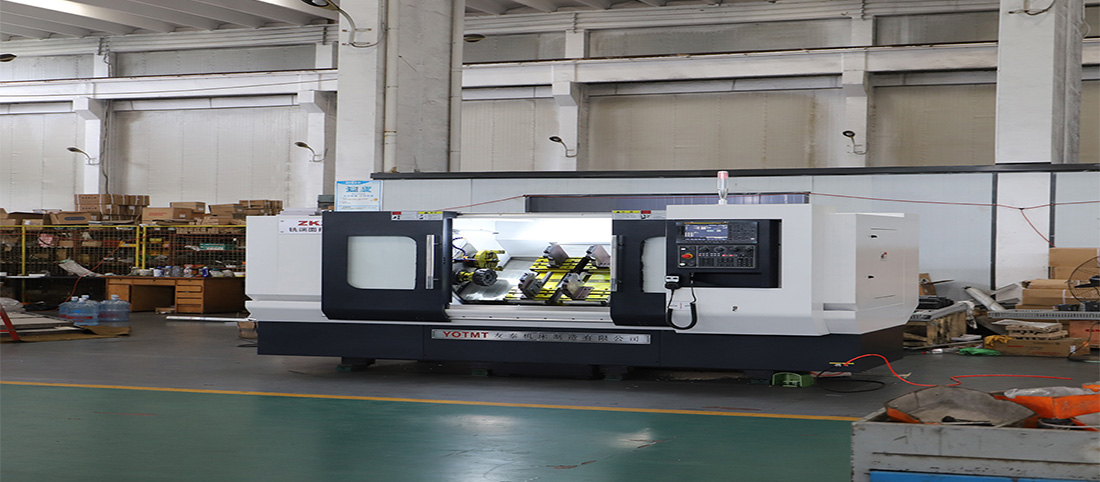

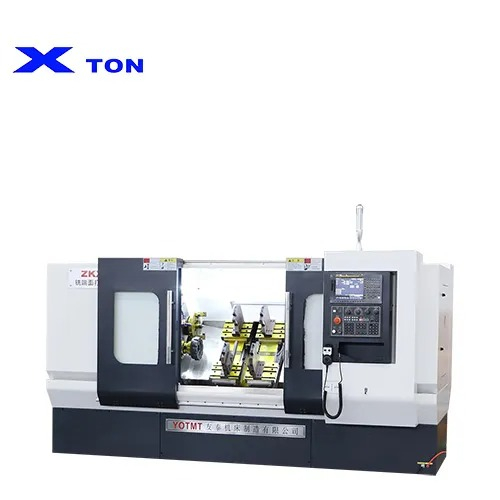

Product Display
Product Features
Smooth chip removal structure
Strong rigidity, suitable for heavy-duty milling processing Close loading distance, low labor intensity, and increased production capacity

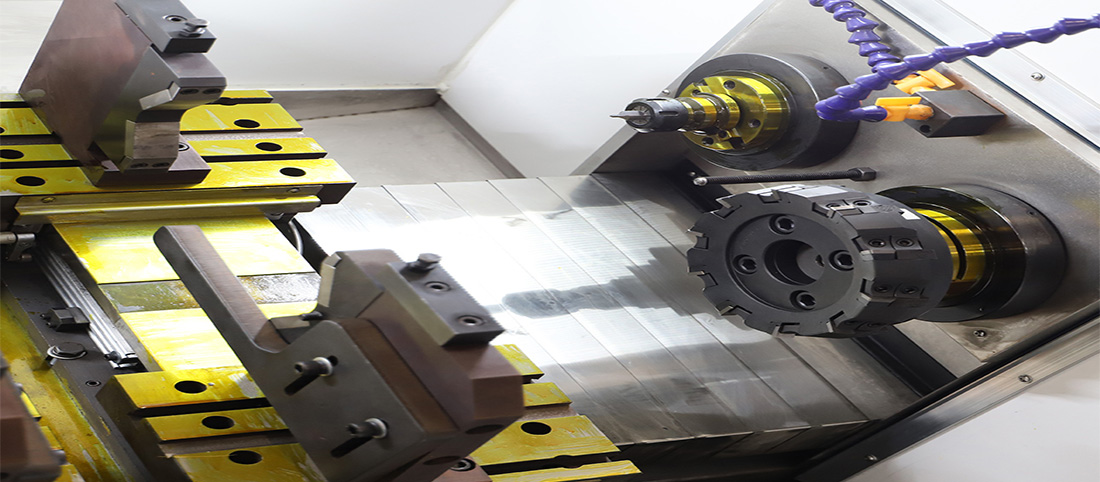

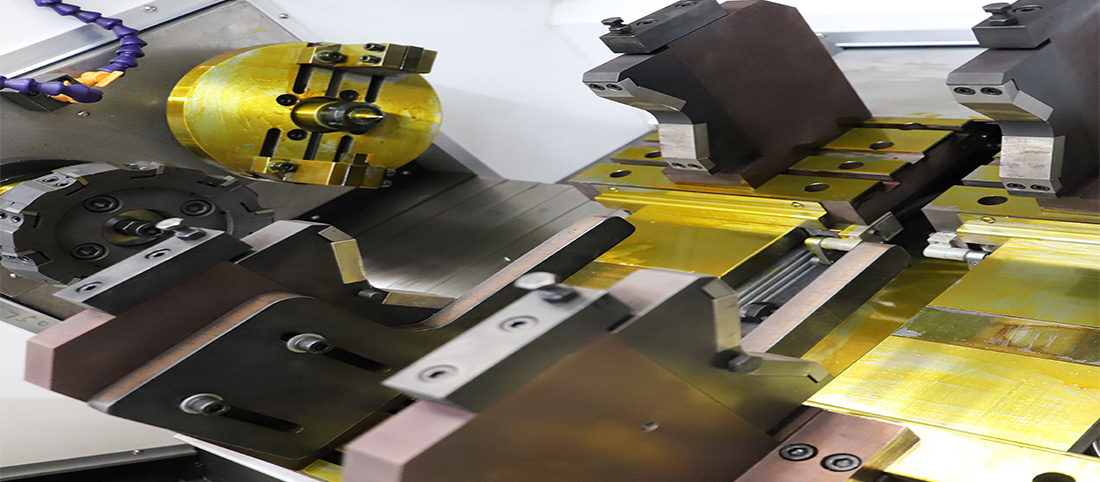

Hydraulic original hydraulic self centering vise
Equipped with fine adjustment function for the center height of the jaw Equipped with an axial automatic positioning system, which eliminates the need for tool alignment when replacing workpieces
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 250-750(modifiable) | ||
| Milling diameter range | mm | φ20-160/250 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ250 | ||
| Rigid tapping | mm | M24 | ||
| U drill | mm | φ60 | ||

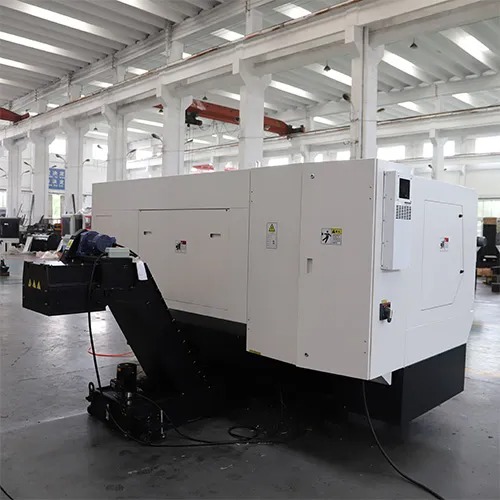

| Chip conveyor | OPTIONAL | |||
Product Overview
In the construction machinery industry, the ZKX series is widely used for automated production of shafts, improving production efficiency and machining accuracy.
In the field of automotive parts manufacturing, this machine tool has been successfully applied to the milling end face and center hole drilling process of automotive steering knuckles, contributing to the lean production of the automotive manufacturing industry.
In addition, the ZKX series is also suitable for the machining of CNC special machine tools for shaft components, such as long shaft milling, milling end faces of crown angle teeth/disc angle teeth, etc., demonstrating its extensive machining capabilities and stability.
The high performance and reliability of the ZKX series also reflect its wide application value and market recognition in different industries
