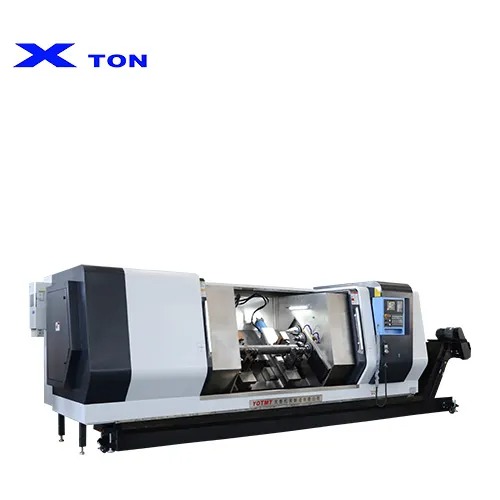

Product Display
Product Features

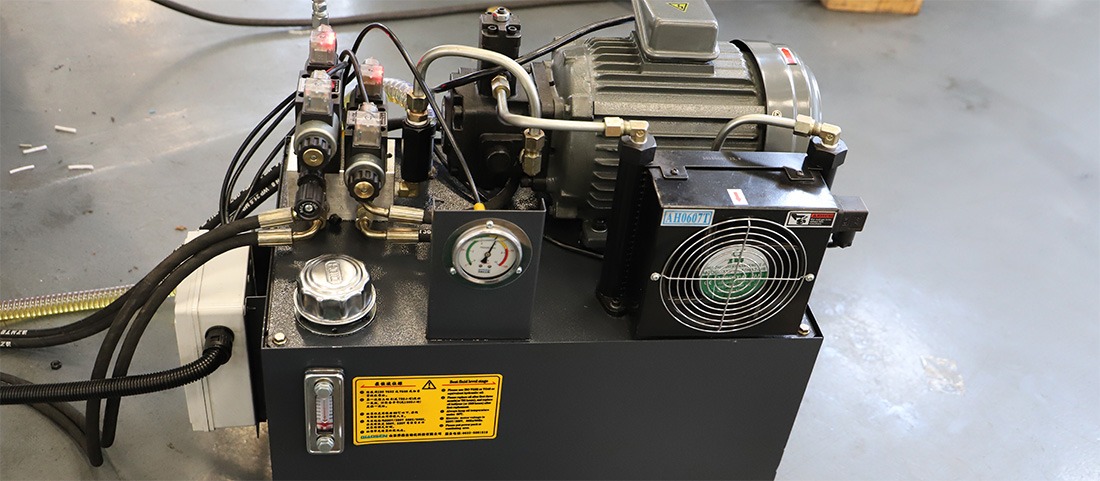

Equipped with an independent hydraulic oil station
Provide stable and sufficient hydraulic power for the machine tool to ensure the normal operation of various hydraulic components, while facilitating maintenance and upkeep.

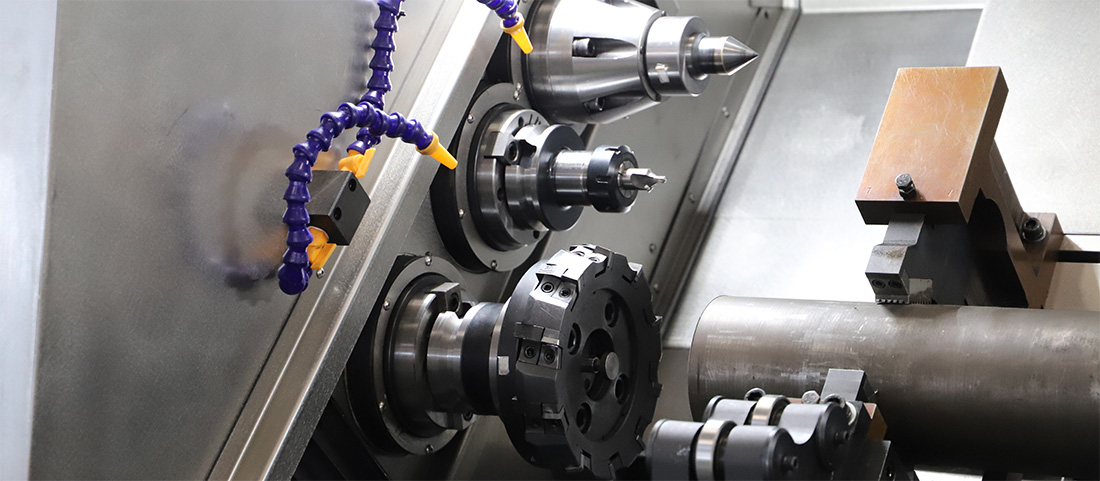

Meet specific processing requirements
Multiple cutting tools can be equipped according to customer needs, such as milling cutters, drill bits, and lathe cutters, to meet diverse machining needs
Support dual end processing to improve processing efficiency and flexibility
Product parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-1800/2500(or larger scale) | ||
| Milling diameter range | mm | φ30-250(or larger scale) | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ150 | ||
| Rigid tapping | mm | M30 | ||
| U drill | mm | φ60 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview

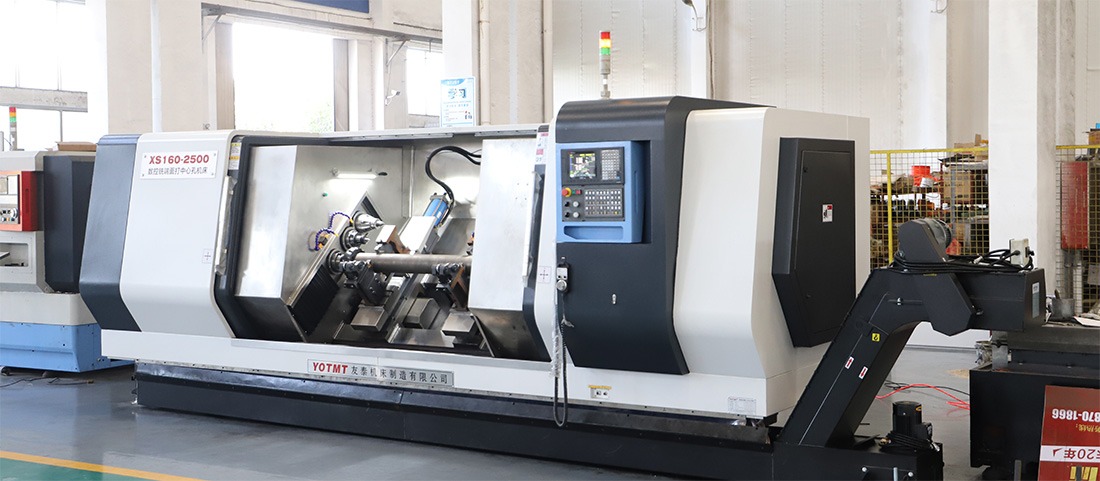

Design advantages: Adopting a 45 ° inclined bed design, in line with mechanical principles, with sufficient rigidity, convenient loading and unloading of the robotic arm, easy chip removal, and improved production efficiency.
