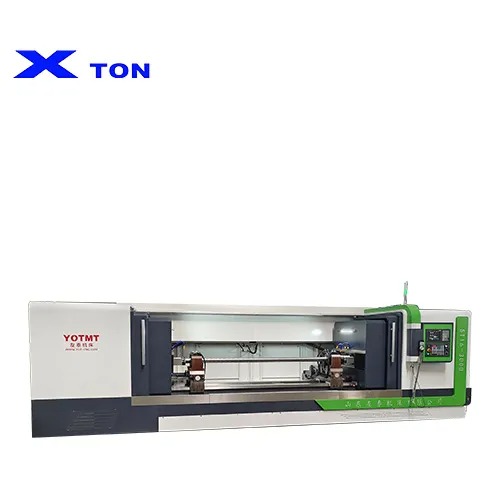

Product Display
Product Features
High precision machining capability

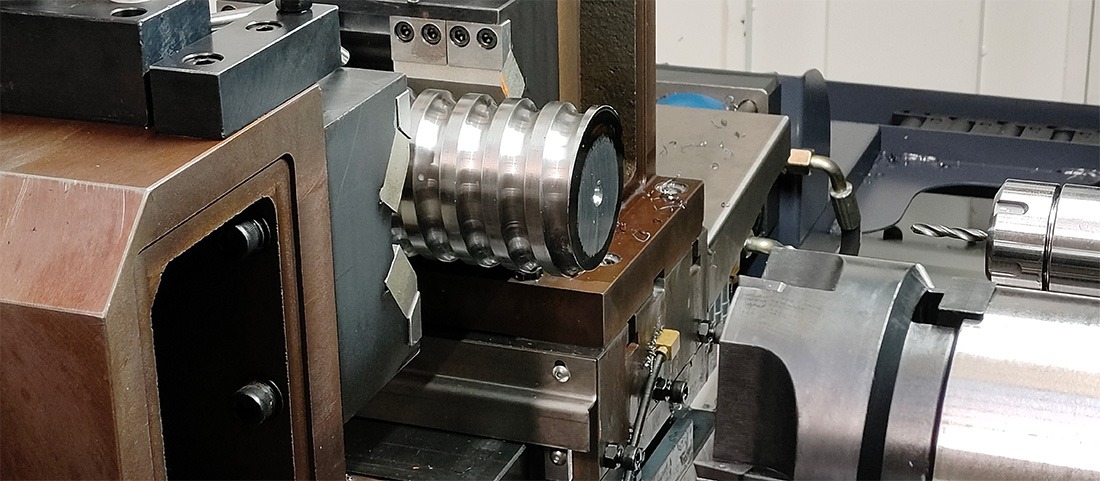

Specially skilled in milling end faces and drilling center holes, even screws with extremely high precision requirements can be easily handled, with excellent machining accuracy
Professional optimization plan
Based on the actual processing technology of the customer, optimize the processing procedures, provide system solutions, and ensure processing efficiency and accuracy
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-1600 | ||
| Milling diameter range | mm | φ20-160 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ120 | ||
| Rigid tapping | mm | M40 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Multifunctionality: This machine tool not only has basic milling functions, but can also be equipped with center hole machining functions such as nesting, tapping, automatic cutting, U-drill, etc., to meet diverse machining needs.
