Product Display
Product Features

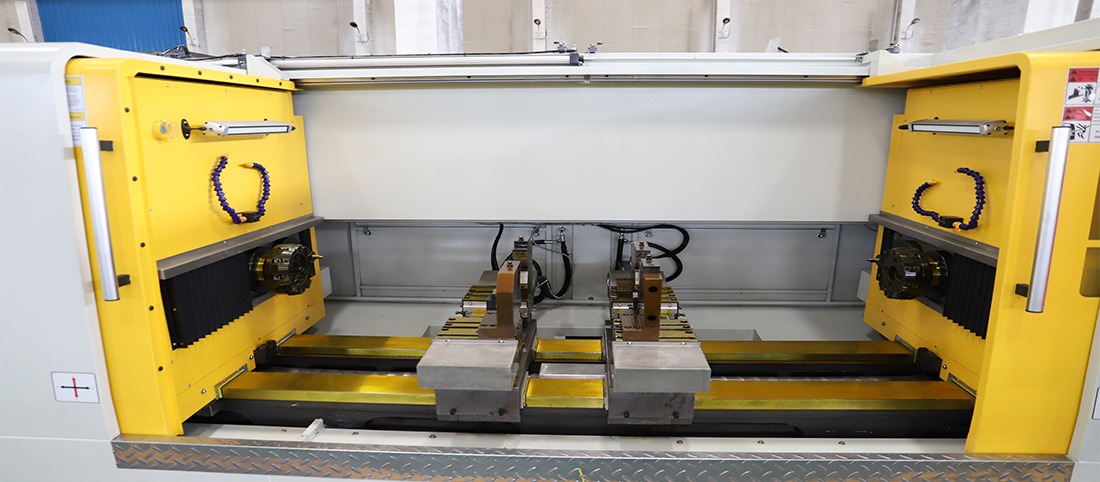

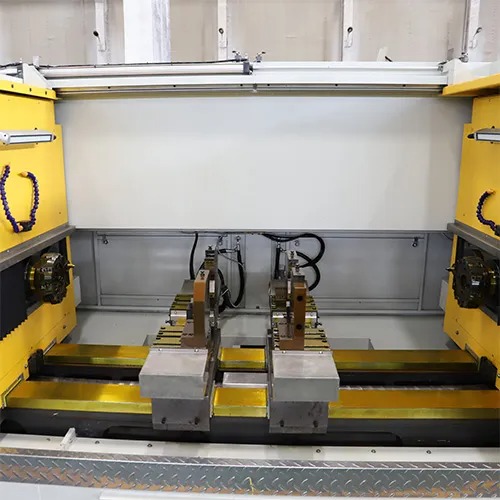

Bidirectional self centering hydraulic fixture
Two way self centering hydraulic vise, suitable for processing workpieces of different specifications.

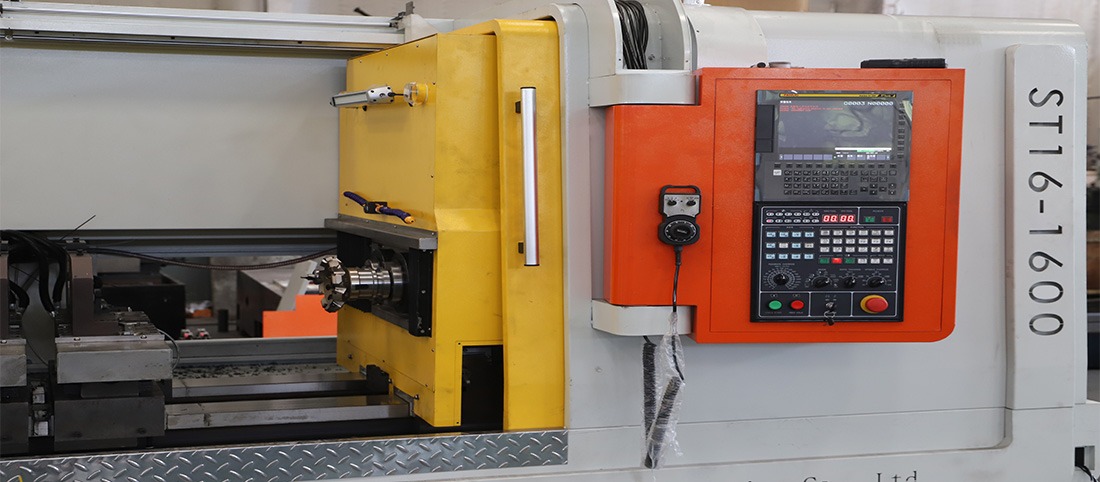

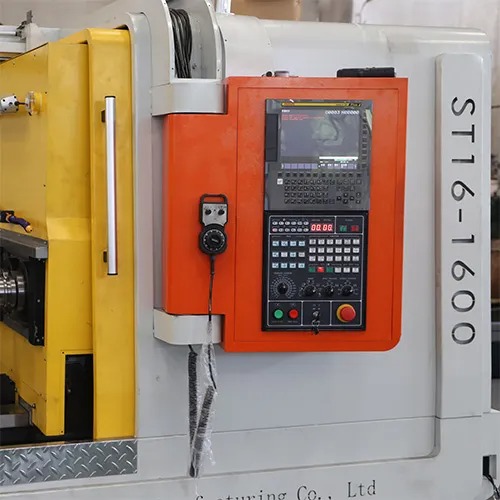

Rotating computer case+external handwheel
Rotating computer control box and external handwheel make operation more convenient.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-1200 | ||
| Milling diameter range | mm | φ20-120 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ90 | ||
| Rigid tapping | mm | / | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Efficient automation: This machine tool can automatically perform circular drilling, improving work efficiency and suitable for the production of various small batch parts.

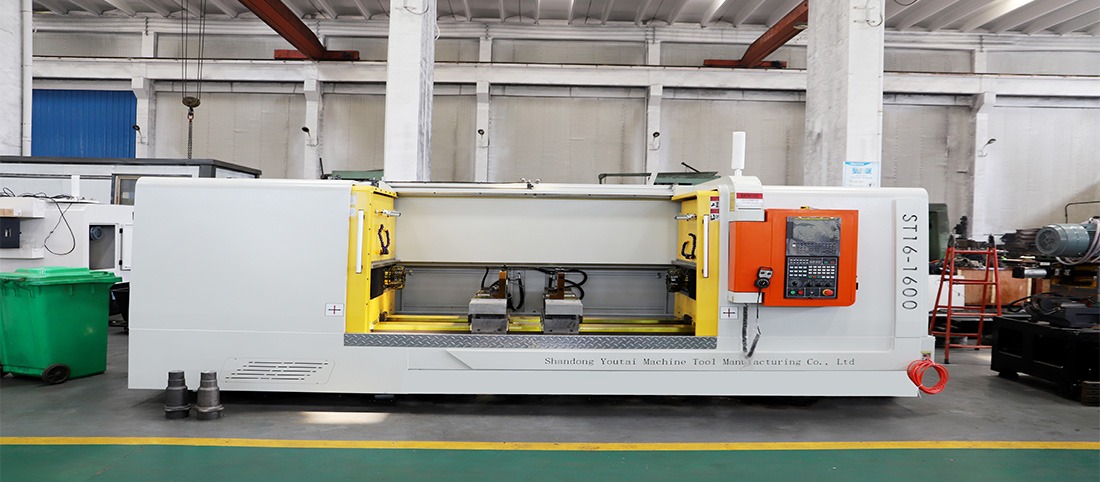

High precision machining: The ST12 milling machine has high-precision machining capabilities and can easily achieve cam and crankshaft machining as well as outer circle machining, ensuring machining accuracy and stability.
