Product Display
Product Features
Professional customization
Provide specialized machining solutions for large train axles and other axle components.
Reliable and durable
The machine tool has a sturdy structure and is made of high-quality materials to ensure long-term stable operation and reduce maintenance costs.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-3000 | ||
| Milling diameter range | mm | φ30-300 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ250 | ||
| Rigid tapping | mm | M36 | ||
| U drill | mm | φ60 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview

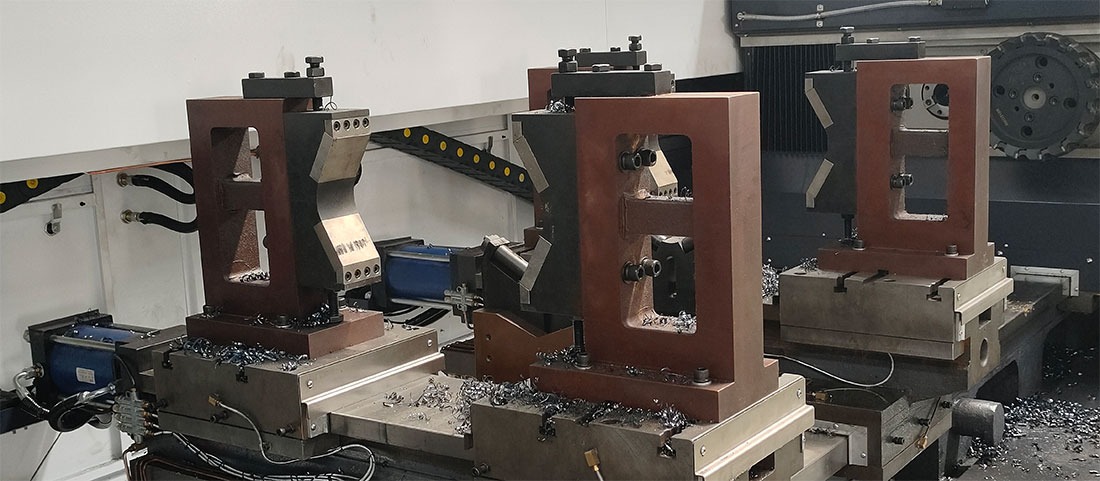

Convenient operation and maintenance: using specially developed hydraulic self centering pliers, easy to clamp and strong clamping force; And the machine tool has comprehensive protection, easy maintenance and upkeep, ensuring long-term stable operation.
