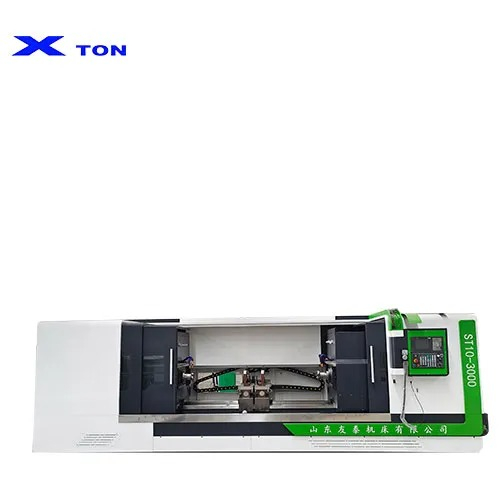

Product Display
Product Features

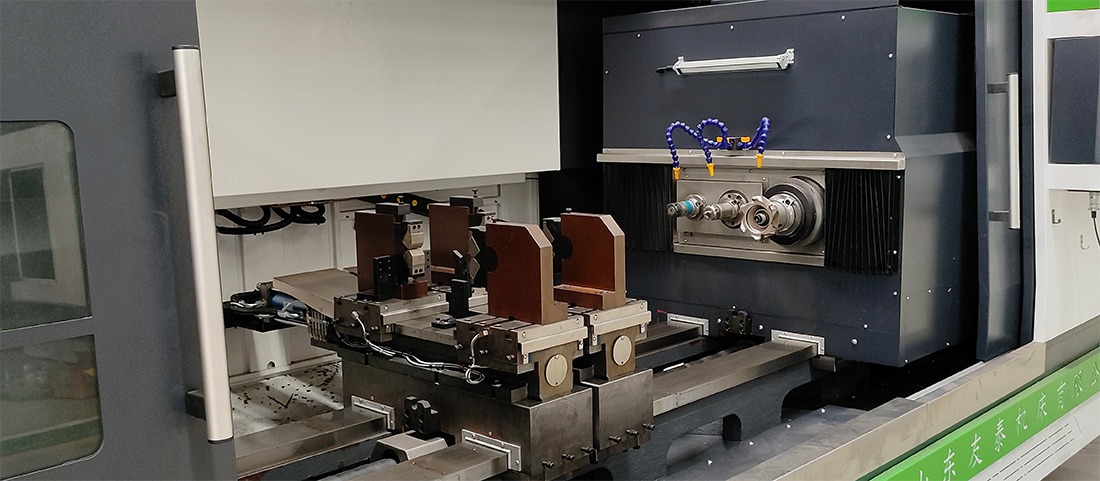

Four axis design, high machining accuracy

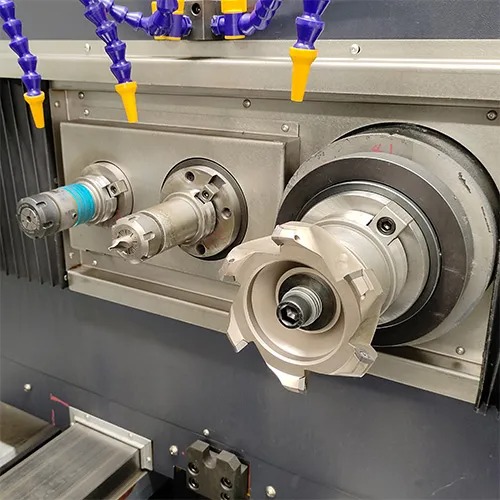

Realize simultaneous machining of two end planes and two end center holes to ensure machining accuracy and consistency.
Strong rigidity and high efficiency

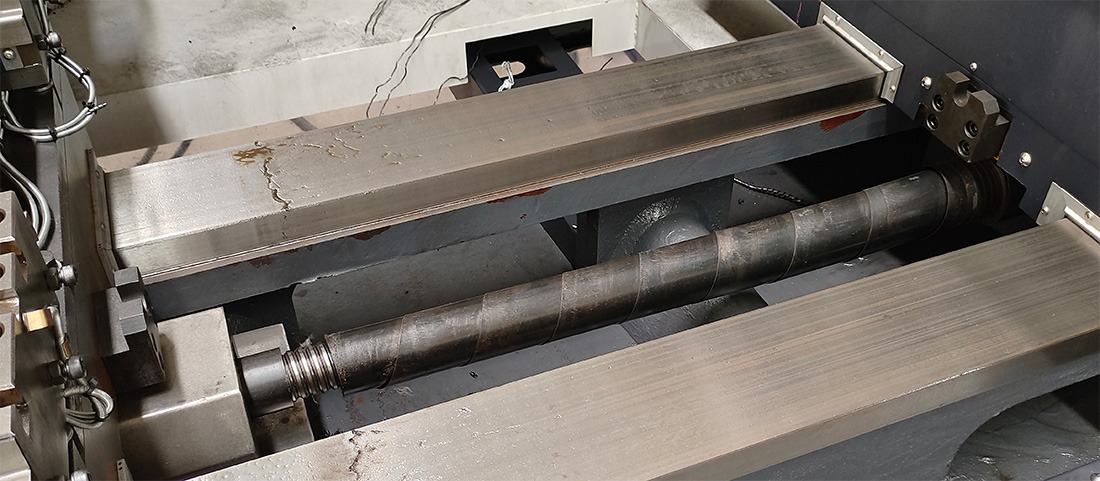

The high rigidity of the guide screw ensures that the machine tool can maintain high precision and stability during the machining process.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-1000 | ||
| Milling diameter range | mm | φ20-90 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ90 | ||
| Rigid tapping | mm | / | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview

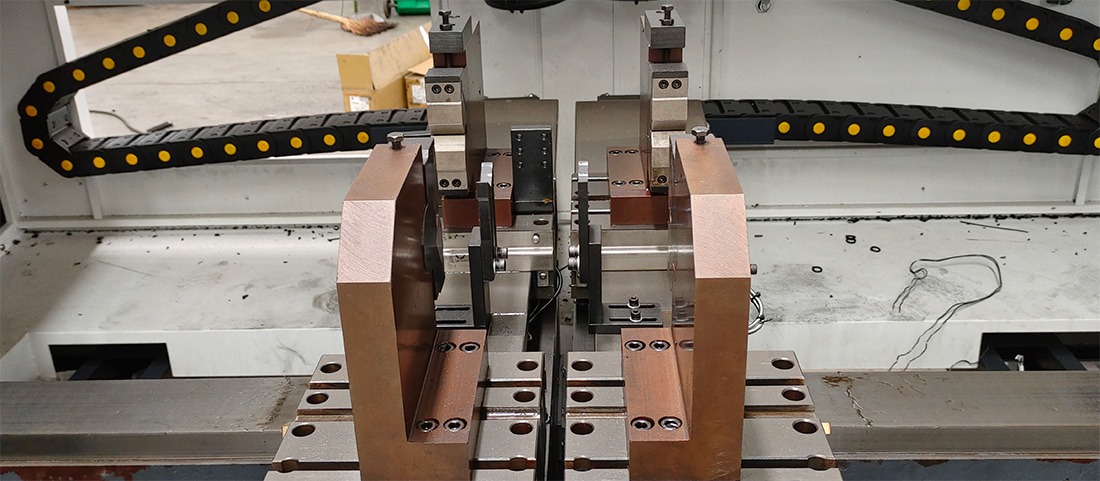

Especially suitable for workpieces with long and short spans, such as automotive half shafts, camshafts, etc., effectively reducing vibration and deformation.
