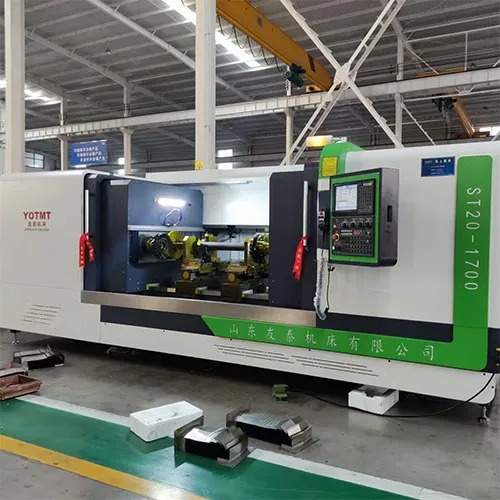

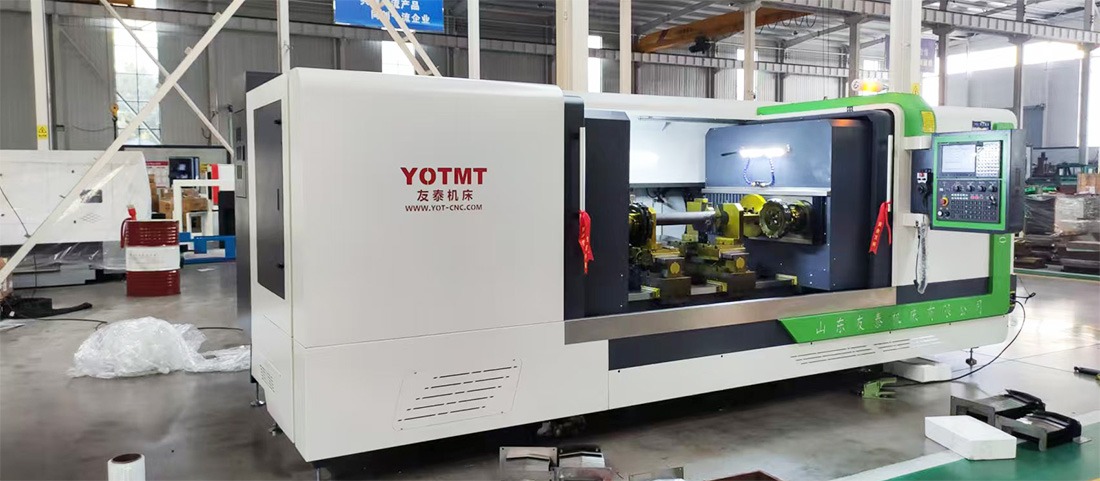

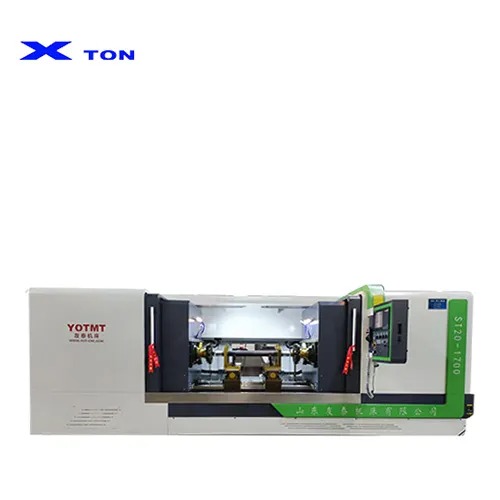

Product Display
Product Features
Efficient processing capability

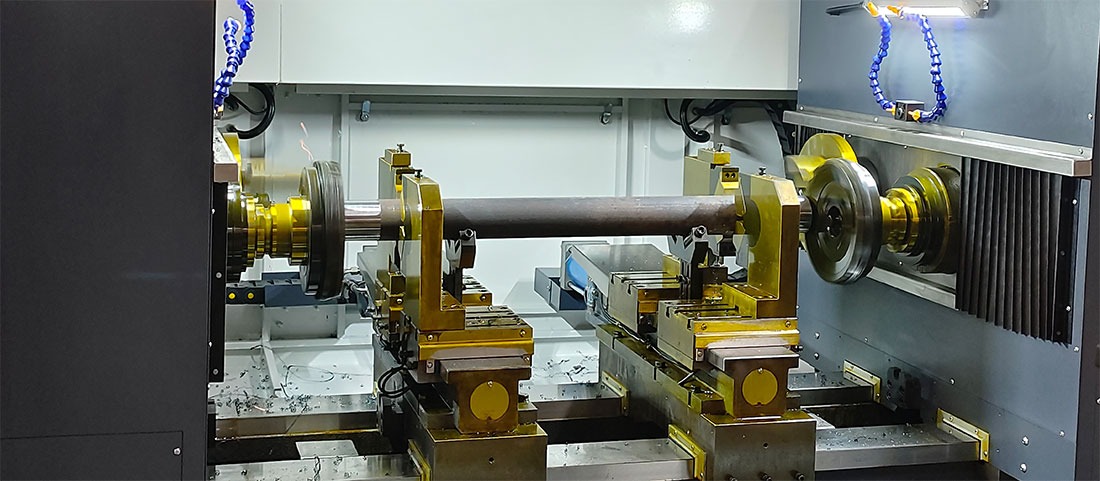

Simultaneously supporting the simultaneous processing of both ends in one clamping, improving processing efficiency.
Rotating computer case+external handwheel

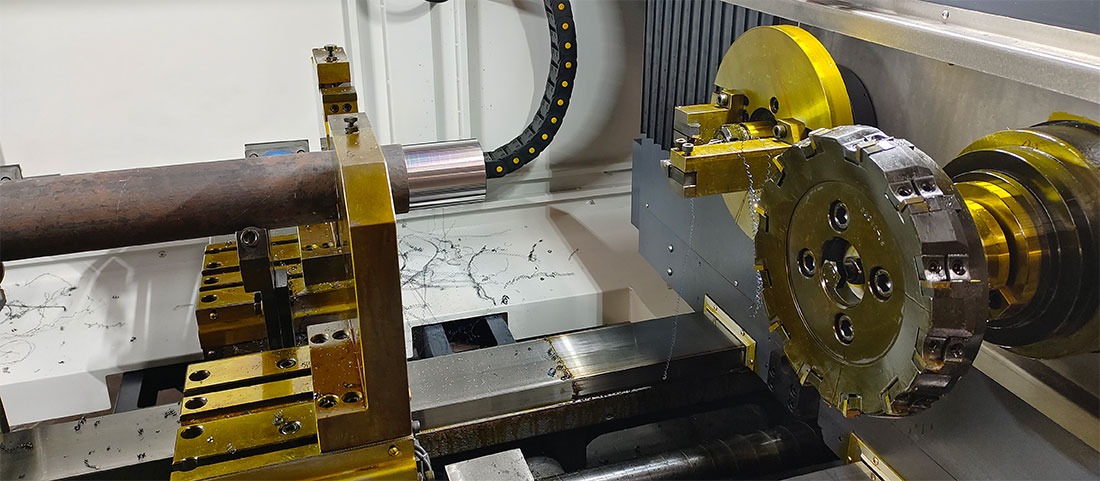

Equipped with high-power mechanical speed regulation and high-precision milling head, the spindle has high rigidity and flexible speed regulation, meeting complex machining requirements.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-2000 | ||
| Milling diameter range | mm | φ20-200 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ160 | ||
| Rigid tapping | mm | M24 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Reasonable price: The price is relatively affordable and can be customized according to customer needs, with high cost-effectiveness.
This machine tool also has the advantages of easy operation and maintenance, making it a stable, reliable, and efficient machine tool equipment. It is suitable for various machining scenarios and can meet the machining needs of different customer
