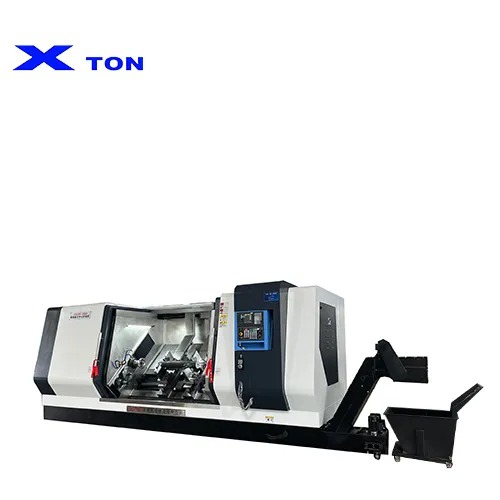

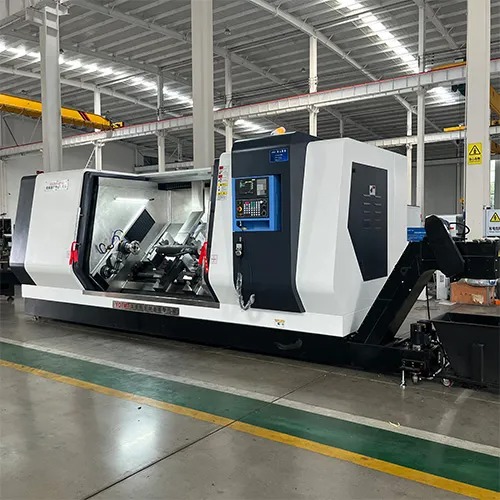

Product Display
Product Features

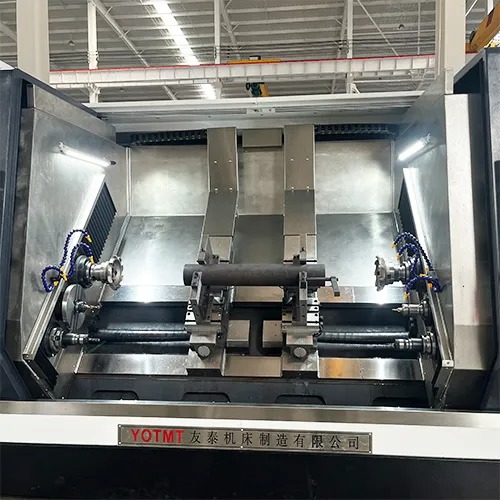

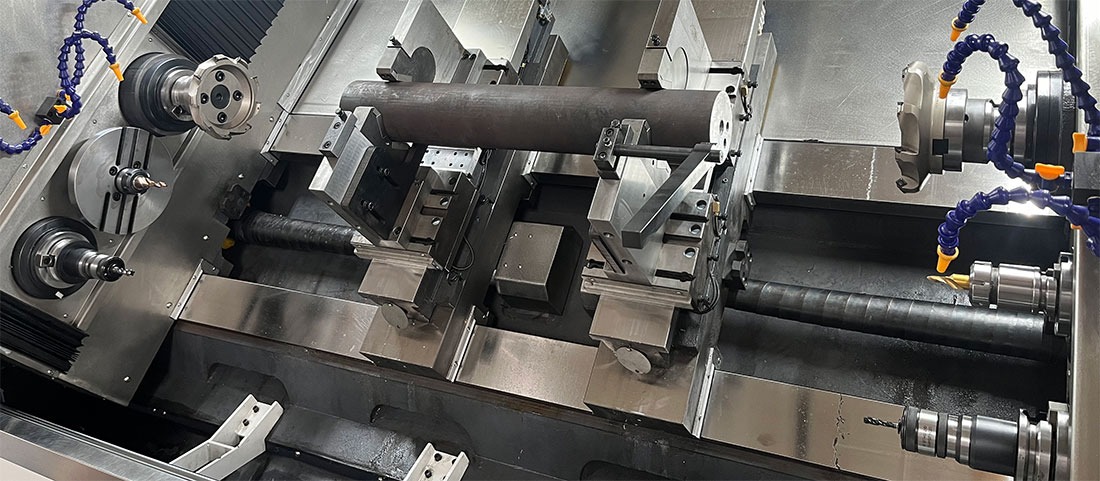

Design of high rigidity inclined bed body
Adopting large spacing and wide guide rails to enhance the rigidity and stability of the machine tool, ensuring machining accuracy.
Stainless steel full protection
Beautiful and durable, effectively blocking the splashing of chip oil and ensuring a safe operating environment.
Product parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-2000 | ||
| Milling diameter range | mm | φ20-120 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ100 | ||
| Rigid tapping | mm | M20 | ||
| U drill | mm | φ50 | ||
| Chip conveyor | OPTIONAL | |||

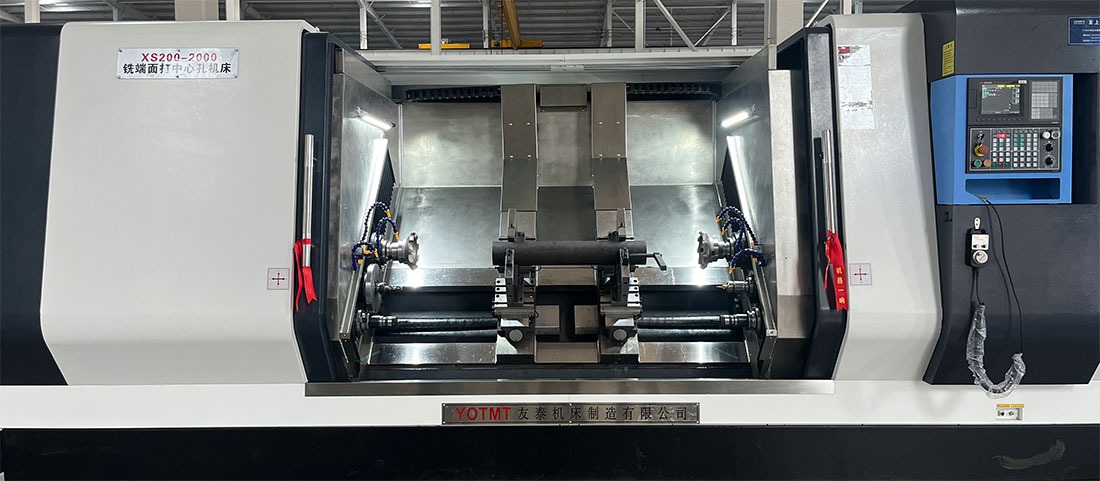

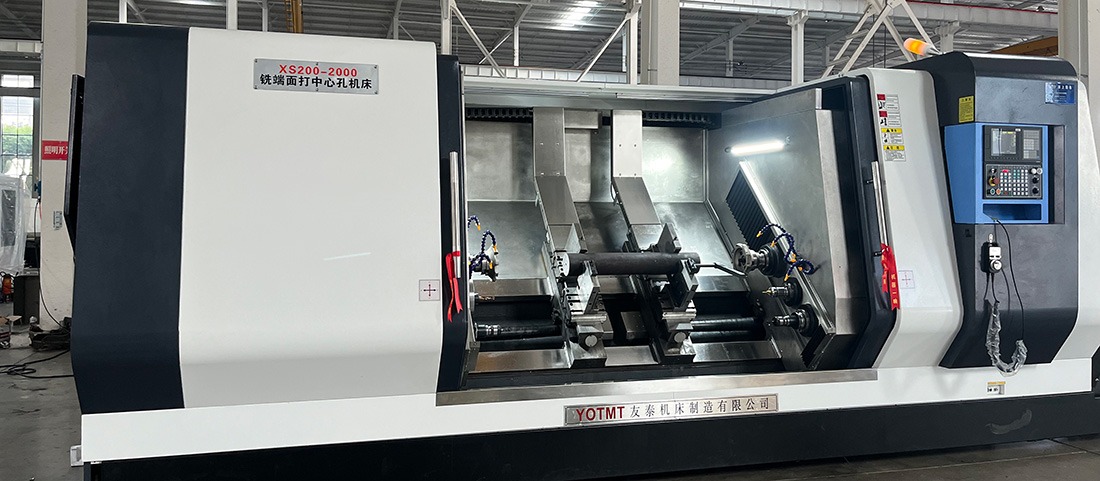

Product Overview
X Ton's large inclined bed milling machine XS20-2000 also has rich experience in cutting tools and non-standard fixtures. It can provide system solutions according to customers' actual processing technology, strictly control quality, and provide high-quality after-sales service.
