Product Display
Product Features

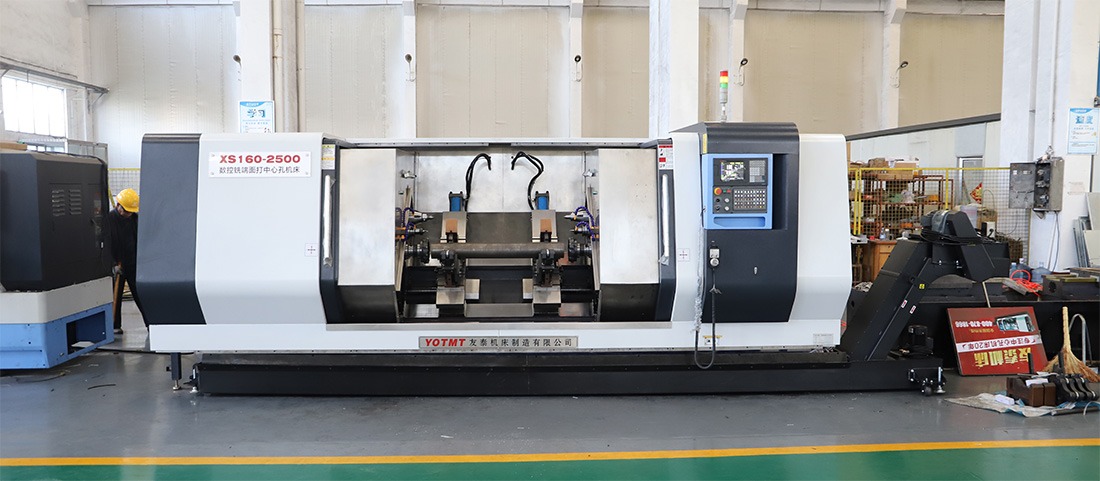

Especially suitable for heavy cutting
The inclined bed body is a popular 45 degree integral inclined bed structure in milling machines, with strong rigidity and suitable for heavy-duty milling processing.

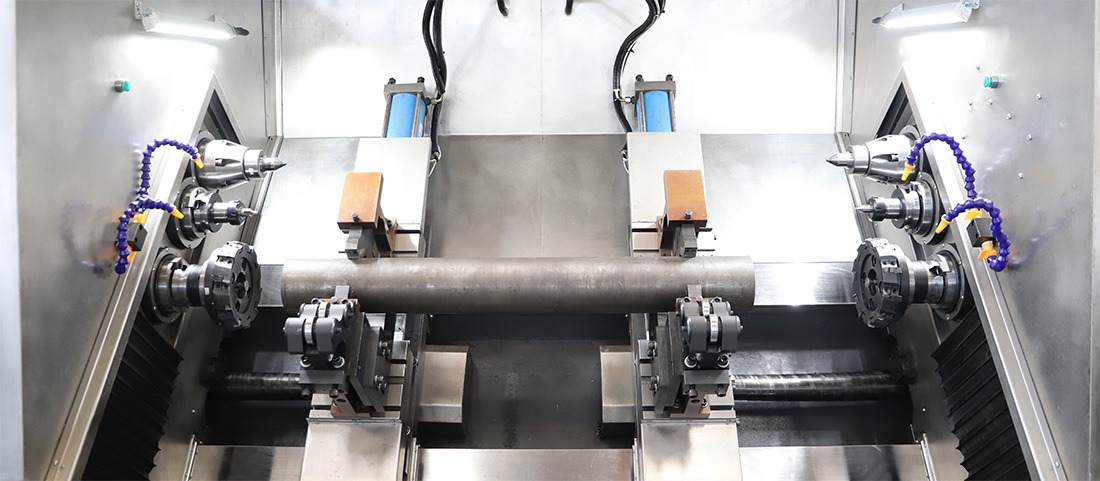

Fast loading and high efficiency
The distance between the loading and unloading position of the workpiece and the operator is very close, and the loading height is relatively low
Significantly reduced the workload of workers, faster feeding speed, and higher efficiency.
Product parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-2500 | ||
| Milling diameter range | mm | φ20-160 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ100 | ||
| Rigid tapping | mm | M24 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Powerful processing capability: The main motor power of this machine tool reaches 15kW, and the maximum processing length can reach 2500mm, suitable for processing large workpieces.
Advanced CNC system: equipped with CNC system to achieve precise control, convenient operation, and improve machining efficiency.

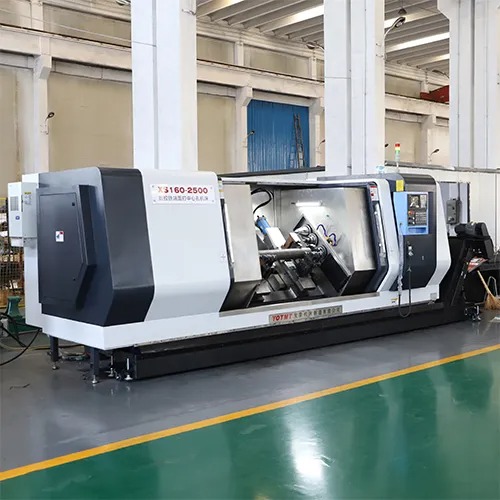

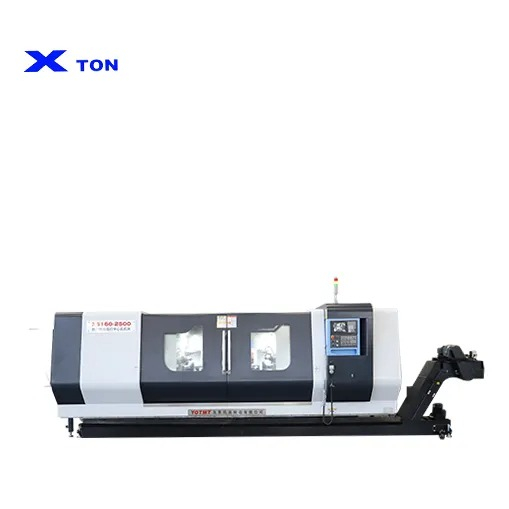

The XS160-2500 large inclined bed milling machine from X Ton is also equipped with various processing technology options, such as lathe outer circle, chamfering, U-drill, etc., further expanding its processing range and application fields. This machine tool is a high-quality product of X Ton Machine Tool Manufacturing Co., Ltd., reflecting the company's advanced technology and manufacturing strength in the field of CNC milling machines
