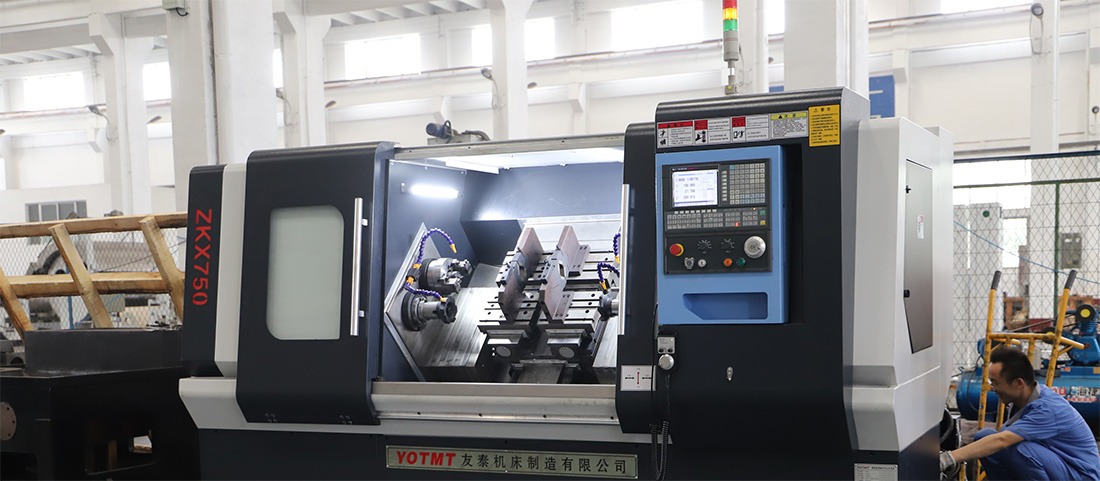

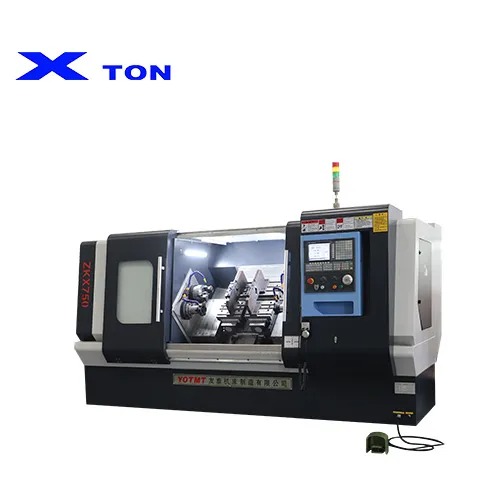

Product Display
Product Features

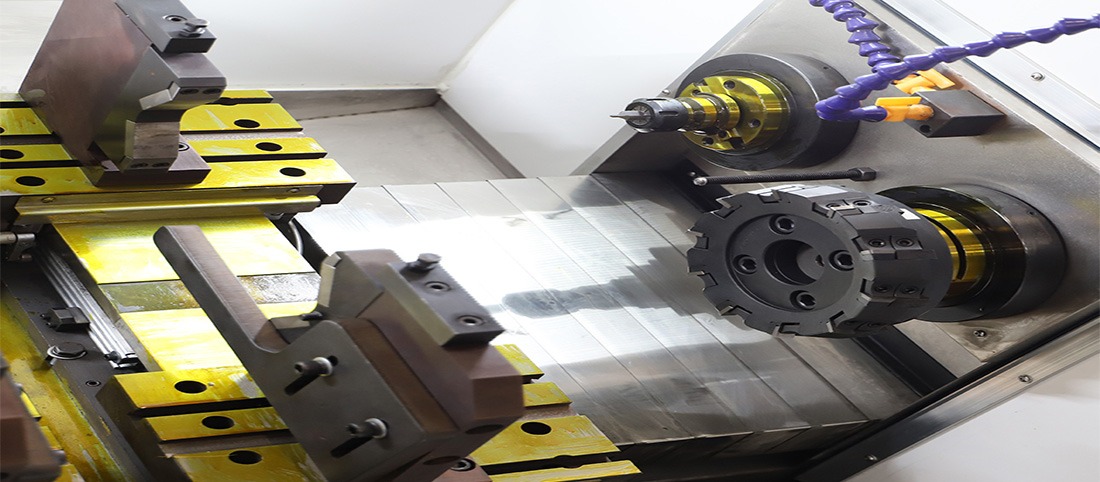

High rigidity heavy-duty design
Adopting a 45 ° or 60 ° overall inclined bed structure, the structure has strong rigidity and is particularly suitable for heavy-duty milling processing, ensuring stability and durability under high-intensity operations

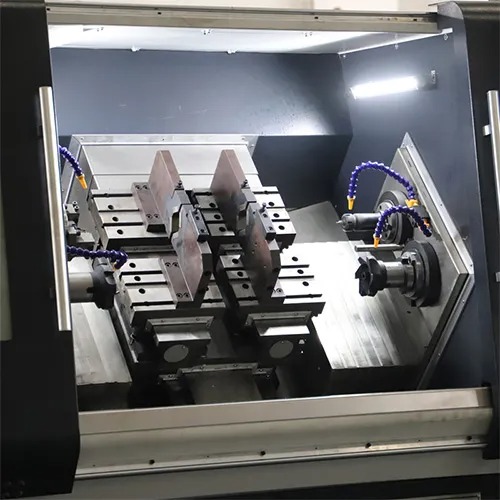

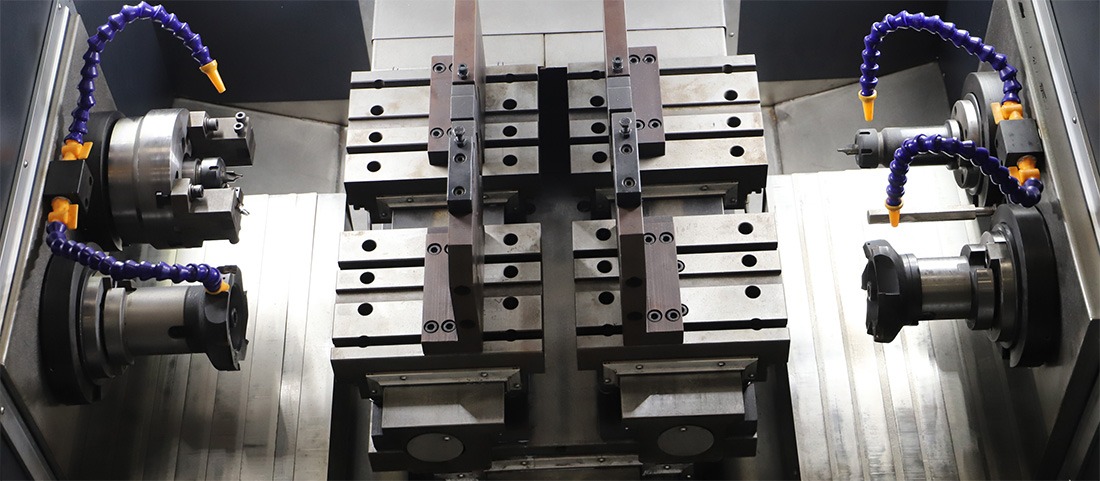

Hydraulic original hydraulic self centering vise
Equipped with fine adjustment function for the center height of the jaw
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-750 | ||
| Milling diameter range | mm | φ20-120/160 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ160 | ||
| Rigid tapping | mm | M24 | ||
| U drill | mm | φ60 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Advanced Numerical Control System: Equipped with advanced numerical control systems, it achieves automated machining, precise control of various moving parts of the machine tool, improves production efficiency, and reduces manual intervention.
Efficient chip removal: The inclined bed design is conducive to the smooth discharge of chips, reducing the wear of chips on cutting tools and machining surfaces, and extending the service life of cutting tools and machine tools.
