Product Display
Product Features
Rich manufacturing experience：
The company closely follows customer needs and provides efficient machining machine tool solutions and designs that are tailored to their needs. Years of experience in machine tool research and development help improve milling machine efficiency and meet various complex machining requirements
Wide applicability：
Convenient clamping, strong clamping force, adaptable to processing workpieces of different specifications, with fine adjustment function for the center height of the jaw
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 150-600/750 | ||
| Milling diameter range | mm | φ20-120 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ120 | ||
| Rigid tapping | mm | M20 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
High precision machining effect: This machine tool can ensure high consistency in the center hole and total length accuracy of shaft parts at both ends, with high machining accuracy. Key indicators such as center hole coaxiality and total length consistency have reached industry-leading levels

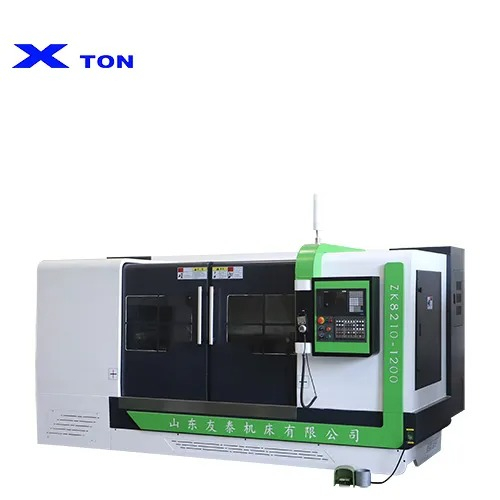

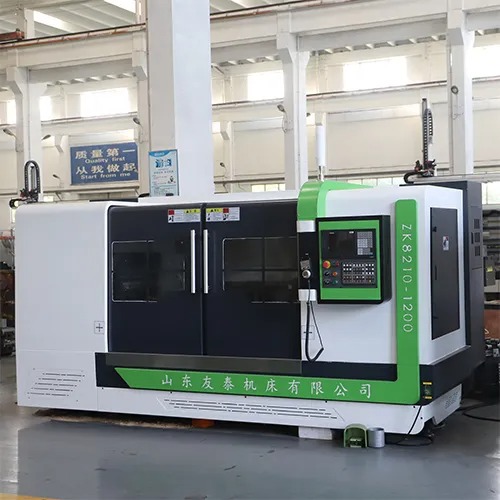

Wide applicability: ZK8210 is suitable for processing shaft parts in multiple industries such as automobiles, tractors, engines, motors, and construction machinery. It is particularly suitable for batch processing of parts in enterprise production workshops and is an ideal processing equipment for shaft products
