Product Display
Product Features
Wide processing range
This machine tool is suitable for machining workpieces with a diameter of 20-80mm and a length of 100-500/200-600mm, meeting the machining needs of various specifications of parts
Diversified functions
In addition to the basic functions of milling end faces and drilling center holes, ZK8208 can also choose additional functions such as chamfering, single/double end tapping, and U-drilling, which improve the flexibility and efficiency of machining
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-600/800 | ||
| Milling diameter range | mm | φ20-80 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.03 | ||
| Center hole depth consistency | mm | 0.03 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ80 | ||
| Rigid tapping | mm | M10 | ||
| U drill | mm | φ40 | ||

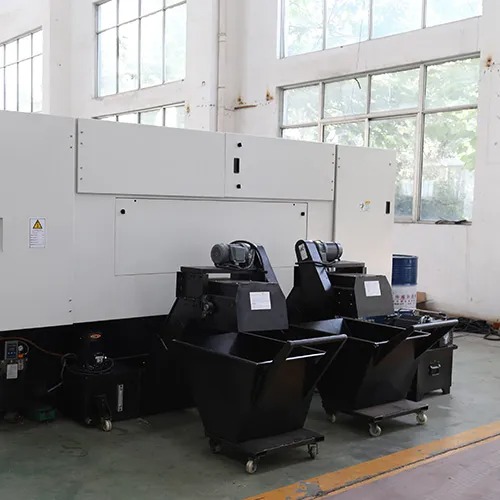

| Chip conveyor | OPTIONAL | |||
Product Overview
The X Ton small and medium-sized horizontal milling machine also has other processing techniques to choose from, such as threading, chamfering, tapping, etc., further expanding its application range. As a professional machine tool manufacturer, X Ton Machine Tool Manufacturing Co., Ltd. has a strong technical team and advanced production equipment, providing reliable guarantees for the quality and performance of machine tools.
