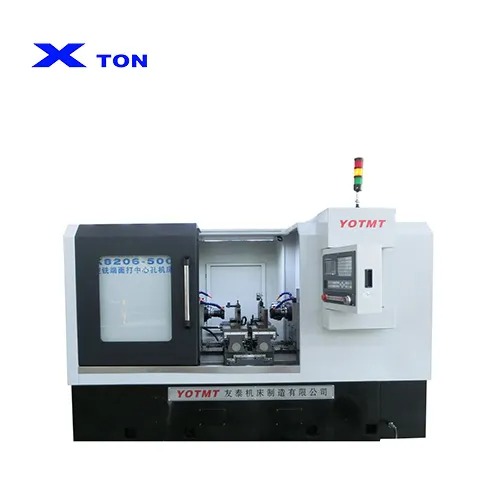

Product Display
Product Features

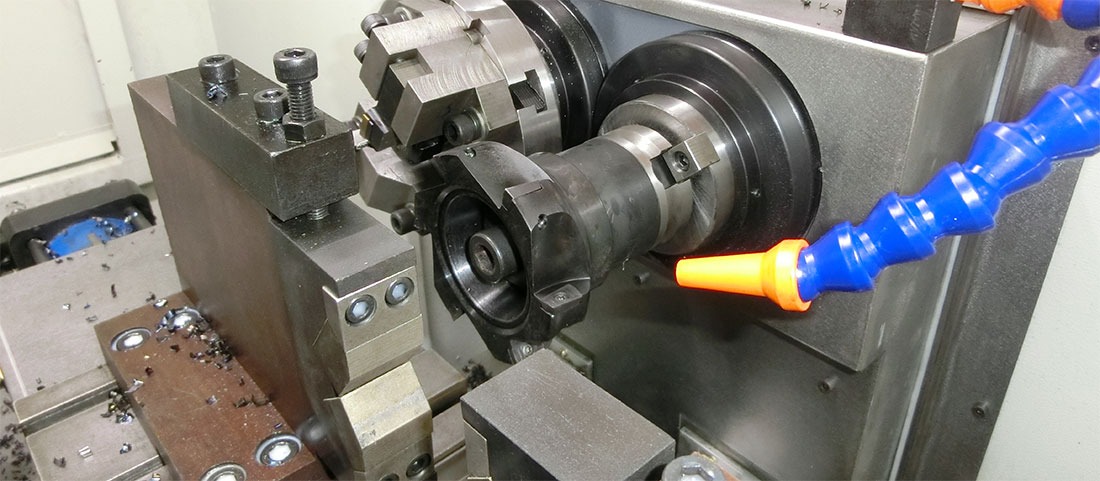

Flat bed layout
The load-bearing surface is perpendicular to gravity, with a stable center of gravity and strong rigidity

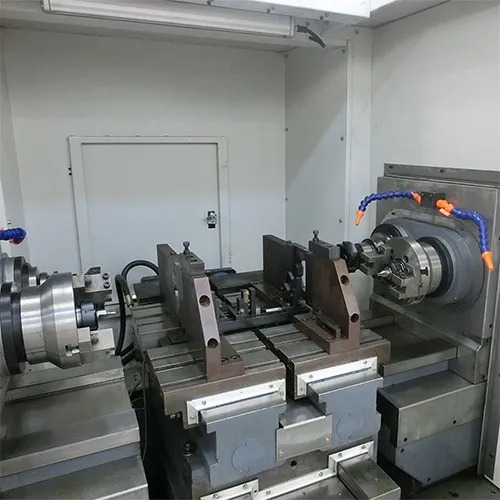

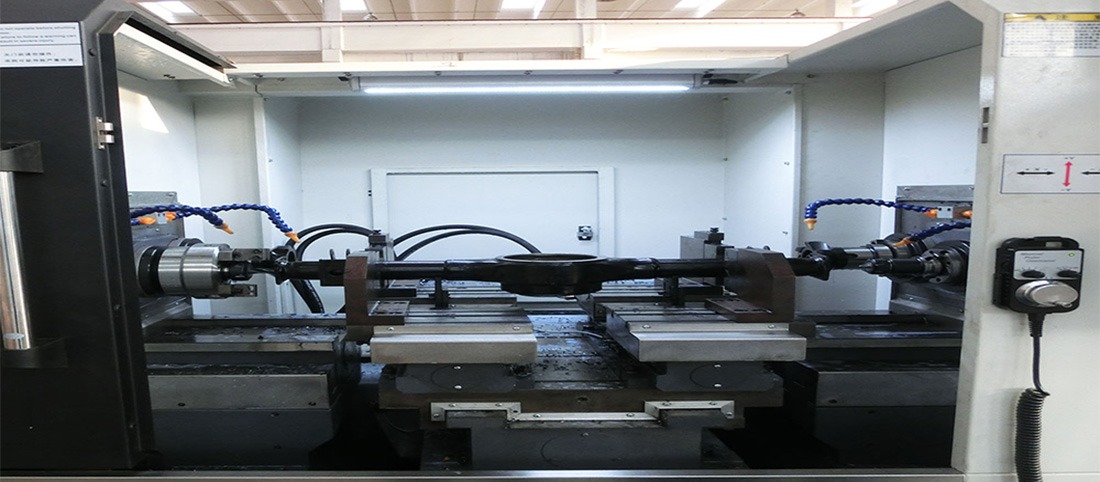

Bidirectional self centering hydraulic fixture
Convenient clamping, strong clamping force, adaptable to processing workpieces of different specifications, with fine adjustment function for the center height of the jaw
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 100-500 | ||
| Milling diameter range | mm | φ20-60 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ60 | ||
| Rigid tapping | mm | / | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview

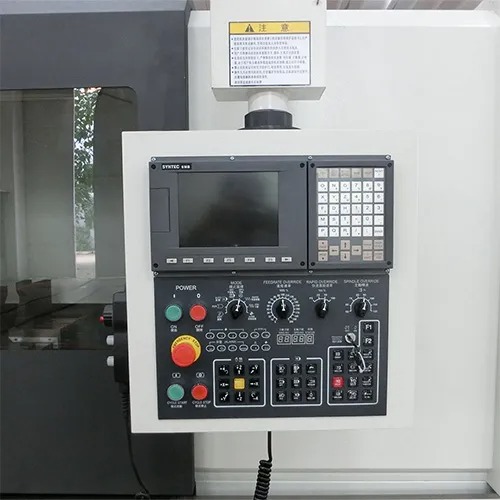

Efficient performance: The X Ton small and medium-sized horizontal milling machine adopts advanced CNC system to achieve automated processing and improve production efficiency.
Flexible customization: This machine tool has a wide range of machining diameters and lengths, and can be customized according to customer requirements to meet different production needs.
High precision machining: Key components such as machine tool spindles and guide rails undergo high-precision machining and assembly to ensure machining accuracy and stability.
Stable electric power: Using electric power, it runs smoothly, is easy to maintain, and reduces usage costs.

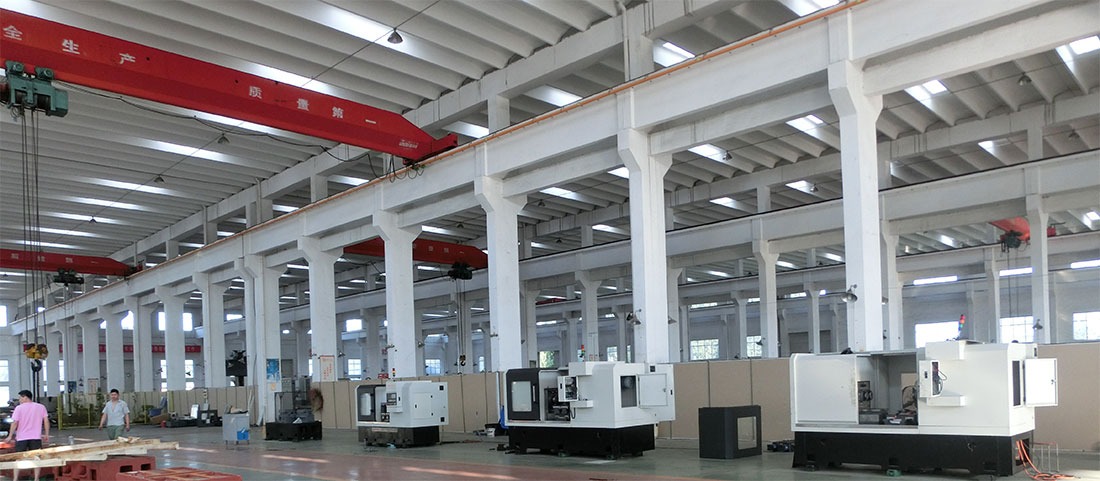

In addition, the X Ton small and medium-sized horizontal milling machine also has other processing techniques to choose from, such as threading, chamfering, tapping, etc., further expanding its application range. As a professional machine tool manufacturer, X Ton Machine Tool Manufacturing Co., Ltd. has a strong technical team and advanced production equipment, providing reliable guarantees for the quality and performance of machine tools.
