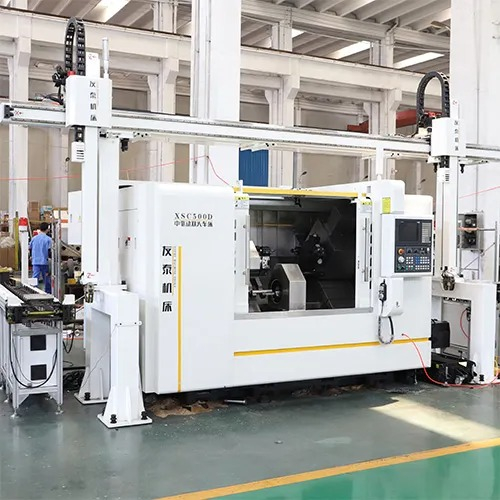

XSC500D
Xton
Product Display
Product Features
Bed body
Adopting a 45 ° overall inclined bed structure, HT300 advanced resin sand casting technology, finite element analysis calculation, reasonable reinforcement rib structure, and strict secondary aging treatment.

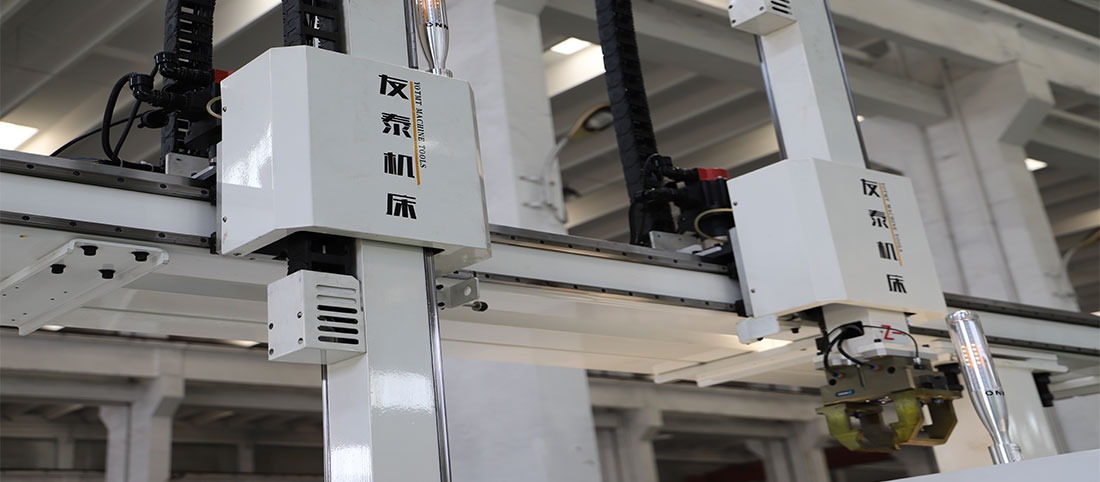

Automation function
Configure automatic axial positioning, workpiece positioning detection, automation interface, automatic counting and other functions.
Product Parameters
| ITEM | UNIT | Parameters | ||

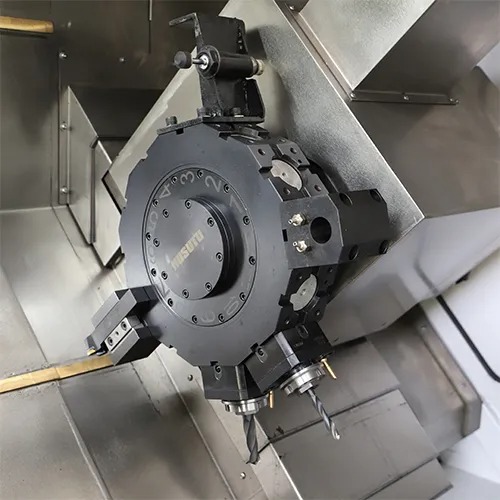

| Number of tool rest stations | 4/8/12 | |||
| Max.processing length | mm | 500 | ||
| Max.processing diameter | mm | 160 | ||
| Max.spindle speed | mm | 2000/1500 | ||
| Spindle power | kw | 7.5/11 | ||
| X/Z axis rapid movement speed | mm/min | 20000 | ||
Product Overview

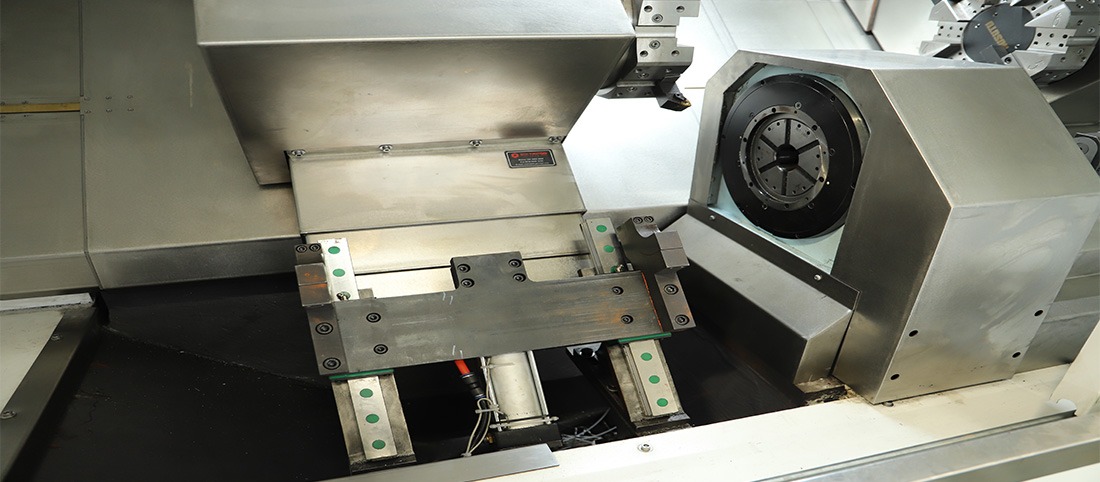

Bed body and guide rail: The bed body is made of HT300 resin sand casting, and the guide rail is of Taiwan silver roller type, ensuring strong rigidity and sufficient lubrication.

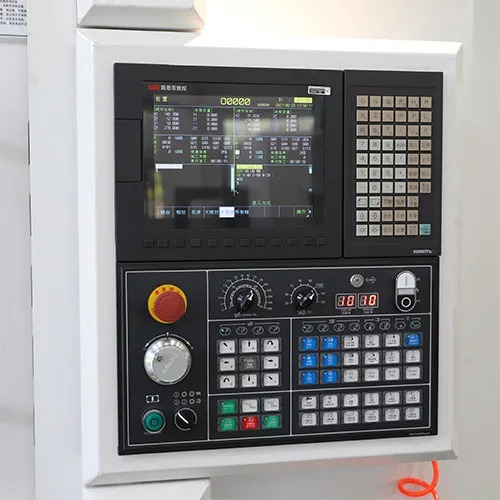

Spindle and CNC system: The spindle adopts imported P4 grade bearings, with high precision and stable performance; The CNC system is equipped with a dual channel bus servo system, which is easy to operate.
