Product Display
Product Features
Especially suitable for heavy cutting
The inclined bed body is a popular 45 degree integral inclined bed structure in milling machines, with strong rigidity and suitable for heavy-duty milling processing.
Fast loading and high efficiency
The distance between the loading and unloading position of the workpiece and the operator is very close, and the loading height is relatively low
Significantly reduced the workload of workers, faster feeding speed, and higher efficiency.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-1200 | ||
| Milling diameter range | mm | φ20-120 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ100 | ||
| Rigid tapping | mm | M20 | ||
| U drill | mm | φ50 | ||
| Chip conveyor | OPTIONAL | |||
roduct Overview

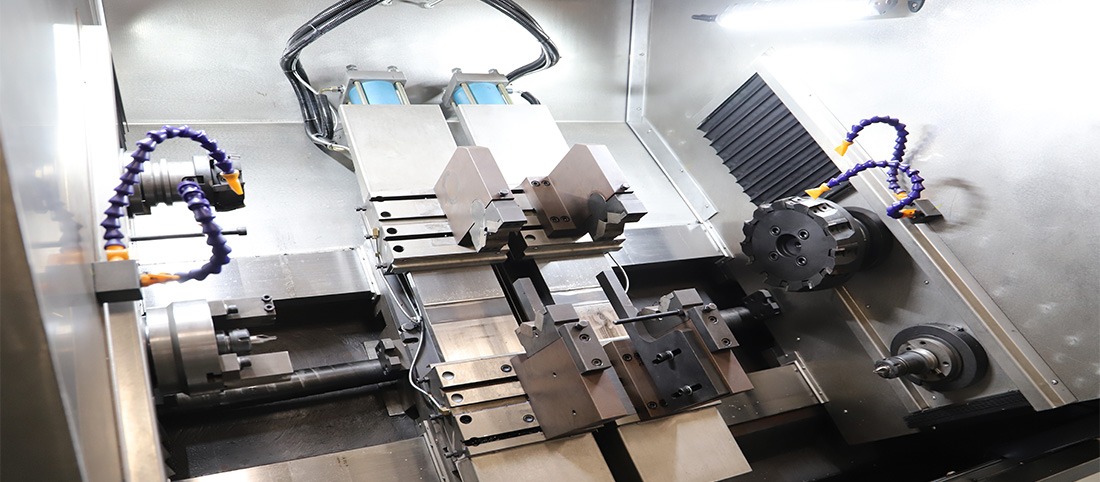

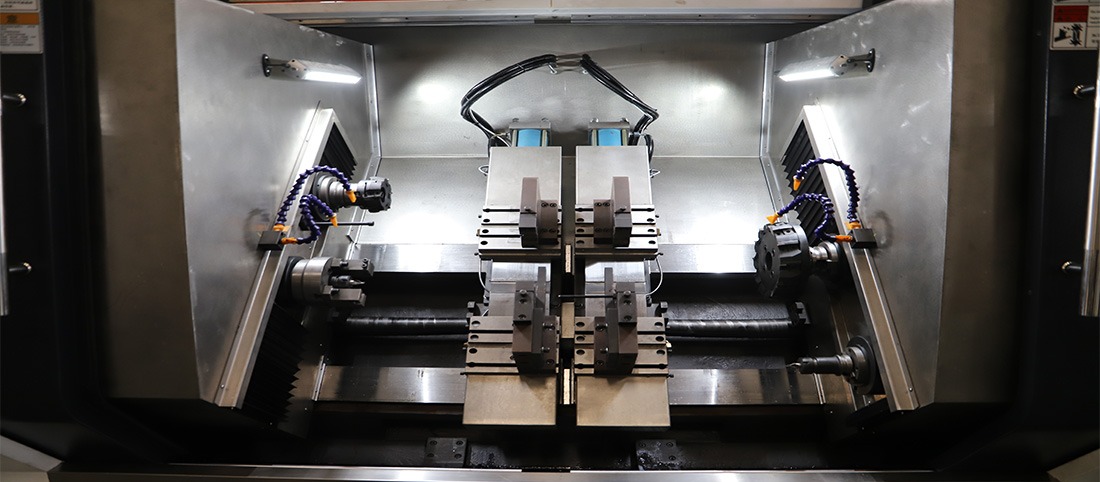

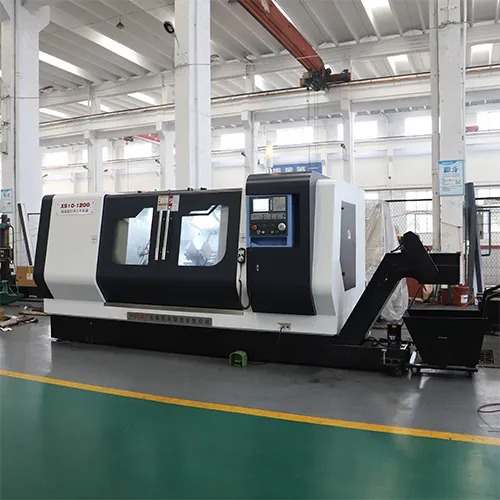

The X Ton machine tool XS10-1200 inclined bed milling machine, with its diverse functions and excellent design, can meet various processing needs and improve production efficiency

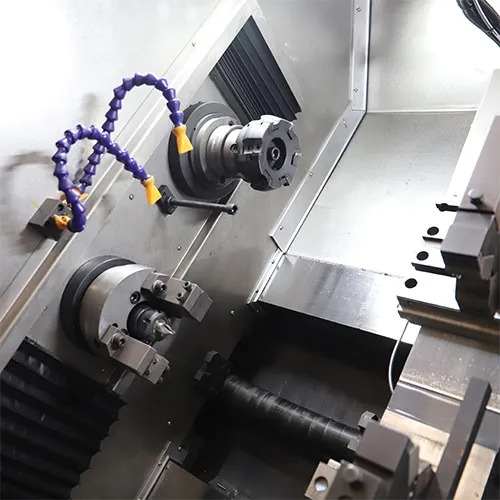

Main functions: Basic functions include milling end faces and drilling center holes, while optional functions include U-drilling, threading, milling grooves, and threading.

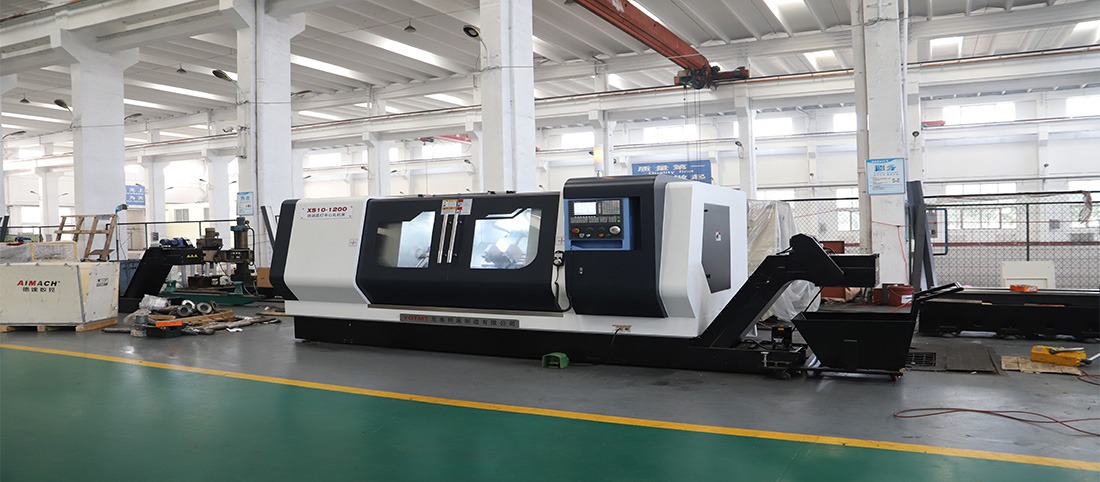

Design advantages: Adopting a 45 ° inclined bed design, in line with mechanical principles, with sufficient rigidity, convenient loading and unloading of the robotic arm, easy chip removal, and improved production efficiency.
