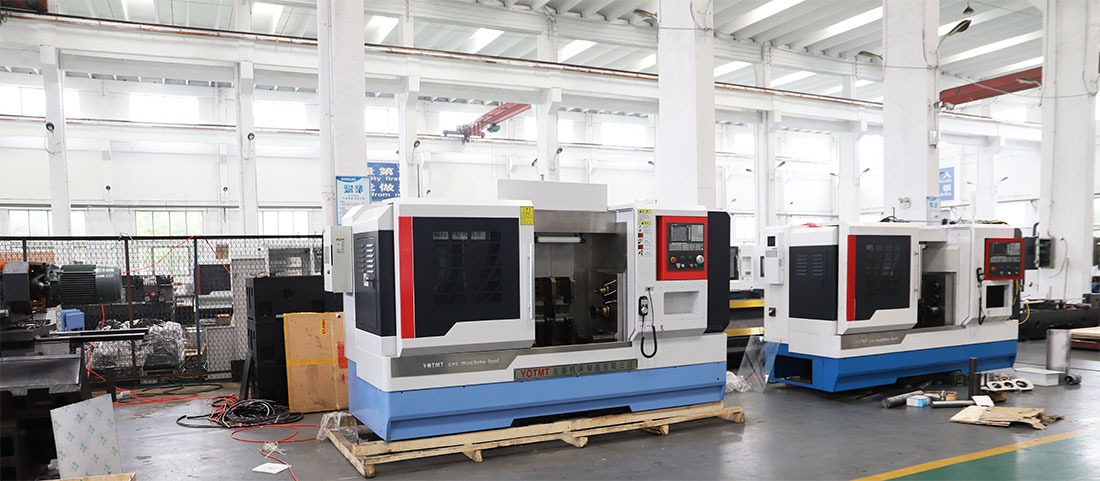

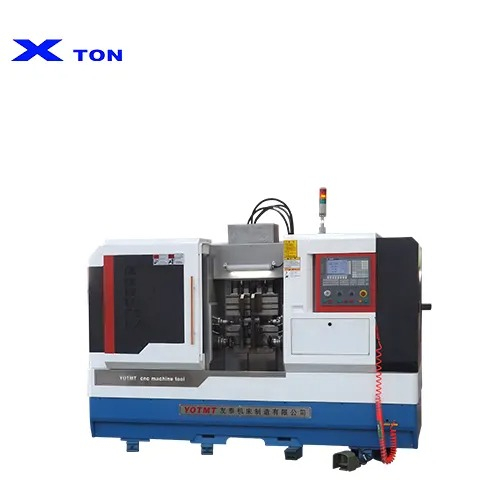

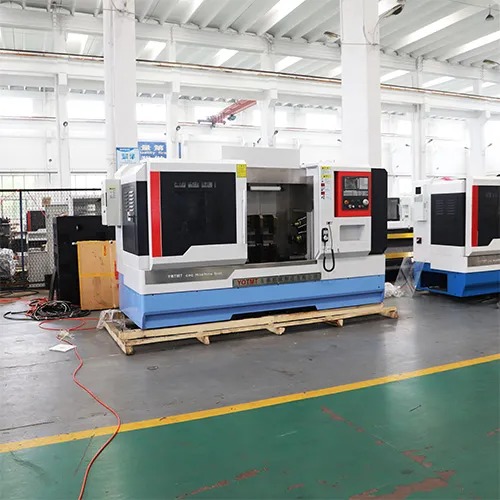

Product Display
Product Features
Smooth chip removal structure

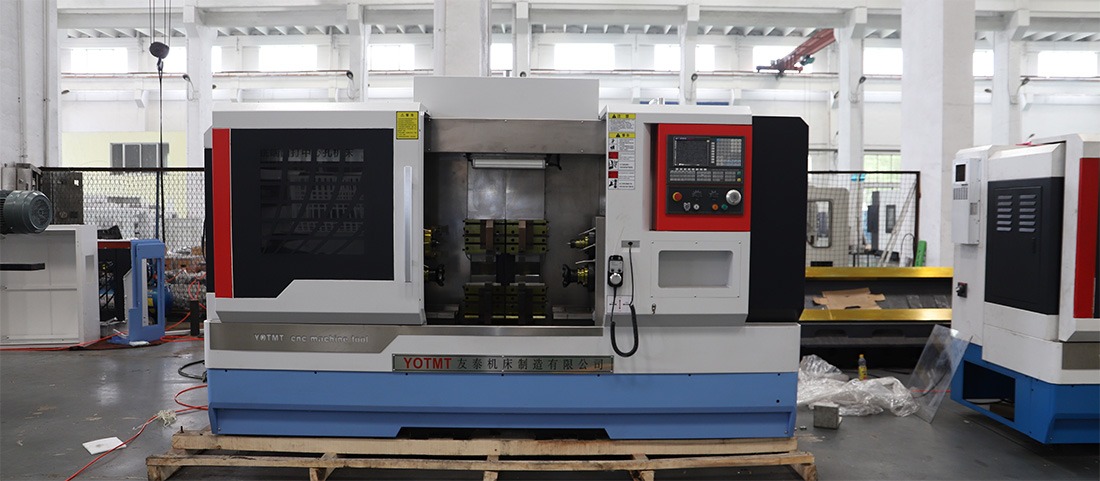

Our milling machines come in three types: flat bed, inclined bed, and vertical. We can design machine tools according to customer needs, recommend models, meet different processing requirements, and provide personalized solutions

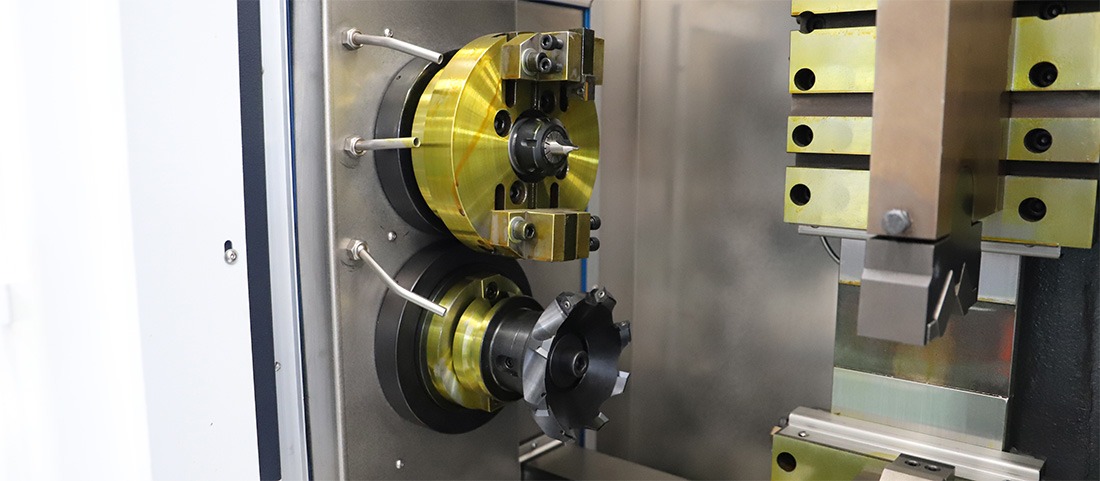

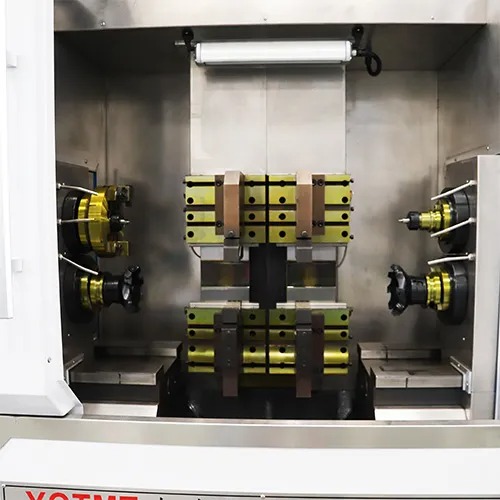

Drilling and milling composite cutting tools
Improving efficiency: The drilling and milling combination tool can complete drilling and milling operations in one go, reducing tool changing time.
Quality assurance: High precision cutting tools ensure stable and reliable quality of the machined parts.
Cost reduction: One knife can be used for multiple purposes, reducing the cost of tool procurement and usage.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 300-800 | ||
| Milling diameter range | mm | φ15-100 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ100 | ||
| Rigid tapping | mm | M20 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Service and Support: X Ton Company provides comprehensive pre-sales consultation and after-sales service to ensure that customers receive timely technical support and maintenance during use.
