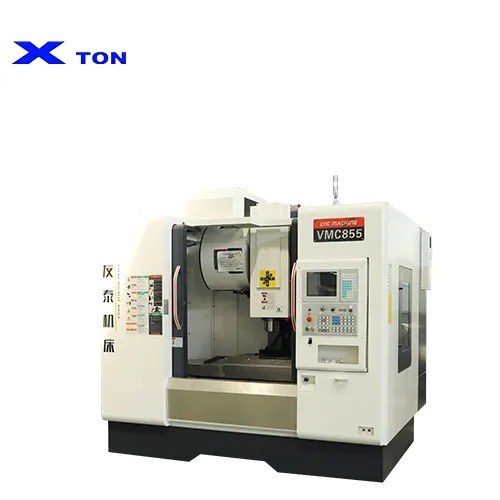

Product Display
Product Features
Standard spindle speed 10000rpm
The standard machine adopts a high horsepower spindle motor. The connection between the spindle and motor belt significantly reduces transmission noise and heat generation.

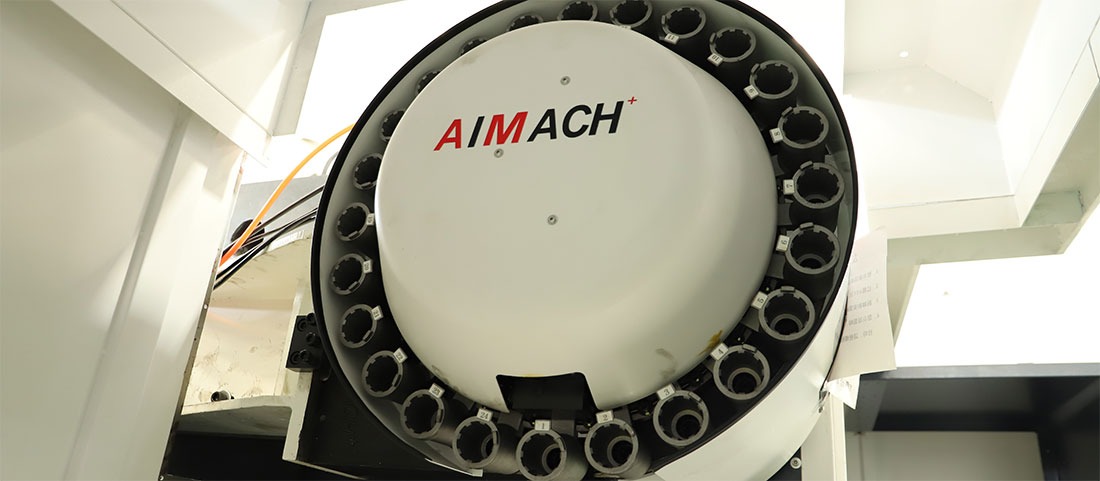

Tool switching device
Advanced cam type drive mechanism, tool selection capability at any position, can be quickly achieved by PLC software control.
Product parameters
| ITEM | UNIT | PARAMETER | ||
| 3-axis travel(X/Y/z) | mm | 800/550/550 | ||
| Distance from spindle end face to table | mm | 150-700 | ||
| Distance from spindle center to column guideway | mm | 600 | ||
| Table T-slots (number - size x spacing) | mm | 5-18x100 | ||
| Spindle taper hole (model/installation size) | mm | BT40 | ||
| Spindle speed | mm | 8000 | ||
| X/Y/Z axis rapid traverse speed | mm | 24/24/20 | ||
| 3-axis positioning accuracy | mm | ±0.01 | ||
| 3-axis repeat positioning accuracy | / | ±0.005 | ||
| Main motor power | Ra | 7.5/11 | ||
| Worktable size | mm | 1000×550 | ||
| Optical machine net weight approx | mm | 5600 | ||
Product Overview
Widely used in various industries: VMC855 is widely used in automotive, mold, aviation, military and other industries. It can be professionally designed and customized according to the processing characteristics of different industries to meet the needs of efficient and high-precision processing.
