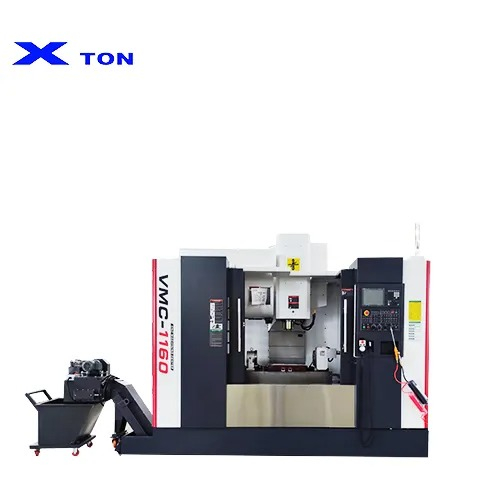

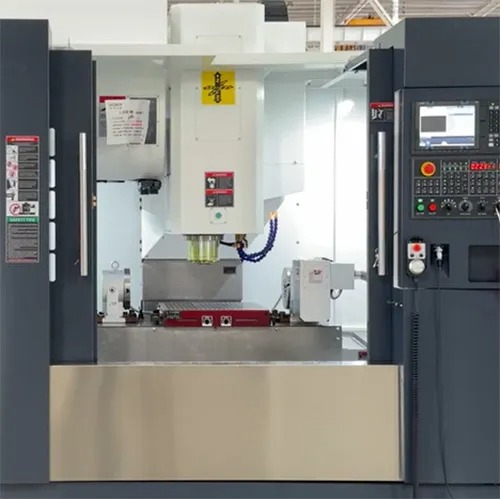

Product Display
Product Features
Standard spindle speed 8000 rpm
The standard machine adopts a high horsepower spindle motor. The connection between the spindle and motor belt significantly reduces transmission noise and heat generation.

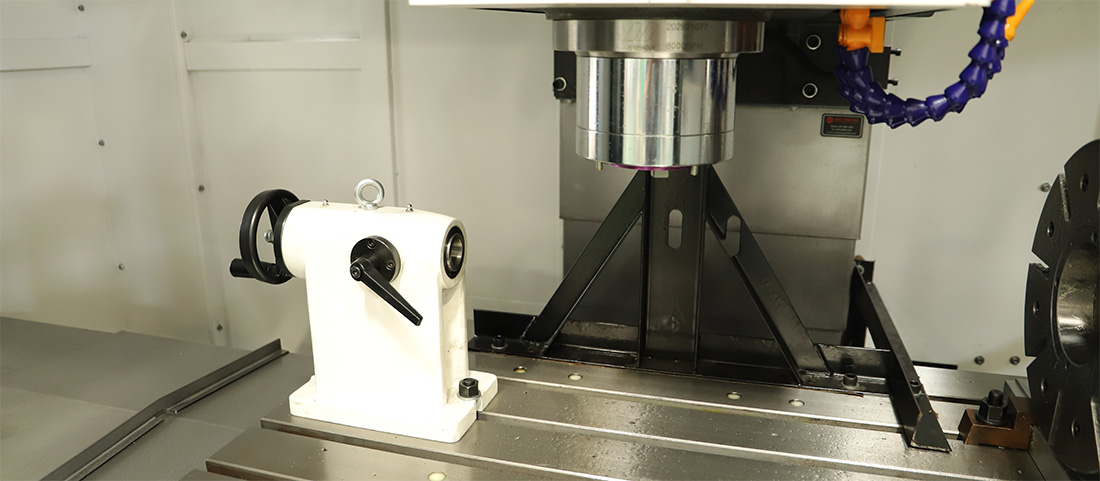

Install tailstock
It can provide additional support and positioning functions. For long axis parts or workpieces that require special positioning, the use of tailstock can significantly improve machining accuracy and stability. At the same time, the tailstock can also be combined with other accessories such as tops, chucks, etc., to achieve more diversified processing methods.
Product parameters
| ITEM | UNIT | PARAMETER | ||
| 3-axis travel(x/Y/z) | mm | 650/500/500 | ||
| Distance from spindle end face to table | mm | 100-600 | ||
| Distance from spindle center to column guideway | mm | 470 | ||
| Table T-slots (number - size x spacing) | mm | 5-18x135 | ||
| Spindle taper hole (model/installation size) | mm | BT40 | ||
| Spindle speed | mm | 8000 | ||
| X/Y/Z axis rapid traverse speed | mm | 36/36/36 | ||
| 3-axis positioning accuracy | mm | ±0.01 | ||
| 3-axis repeat positioning accuracy | / | ±0.005 | ||
| Main motor power | Ra | 5.5/7.5 | ||
| Worktable size | mm | 400X900 | ||
| Optical machine net weight approx | mm | 4200 | ||
Product Overview

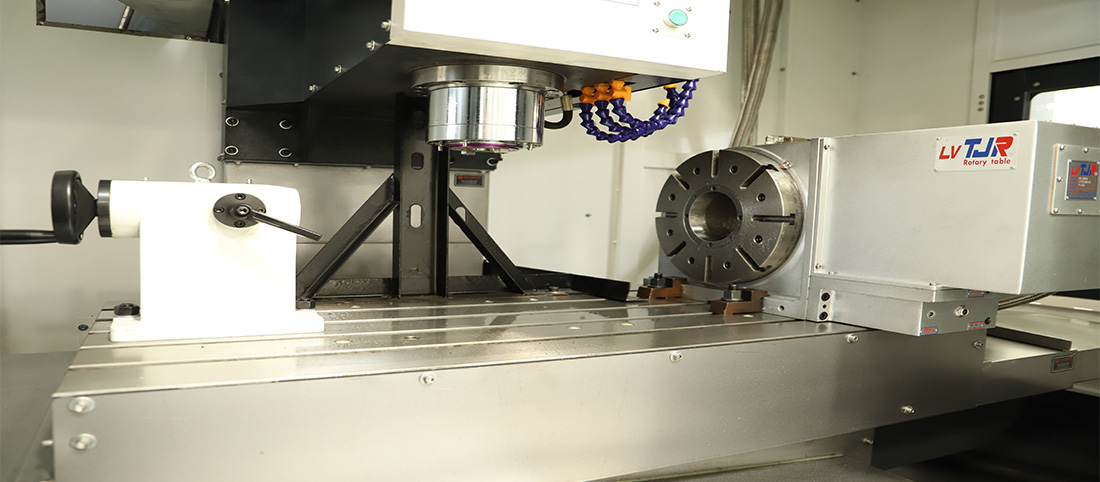

Function extension: According to customer needs, the rotation coordinate axis can be added for processing various complex parts such as flat and cylindrical gears, cams, etc., improving the processing range and flexibility
