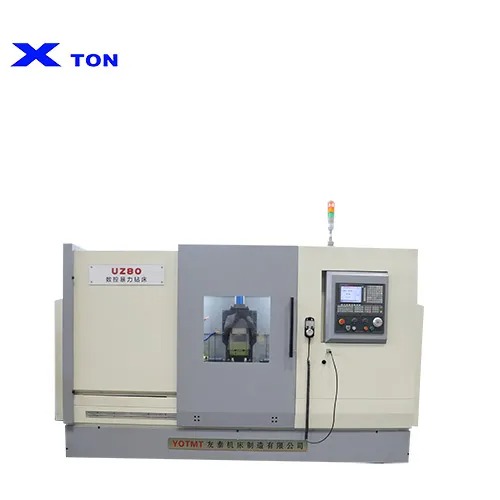

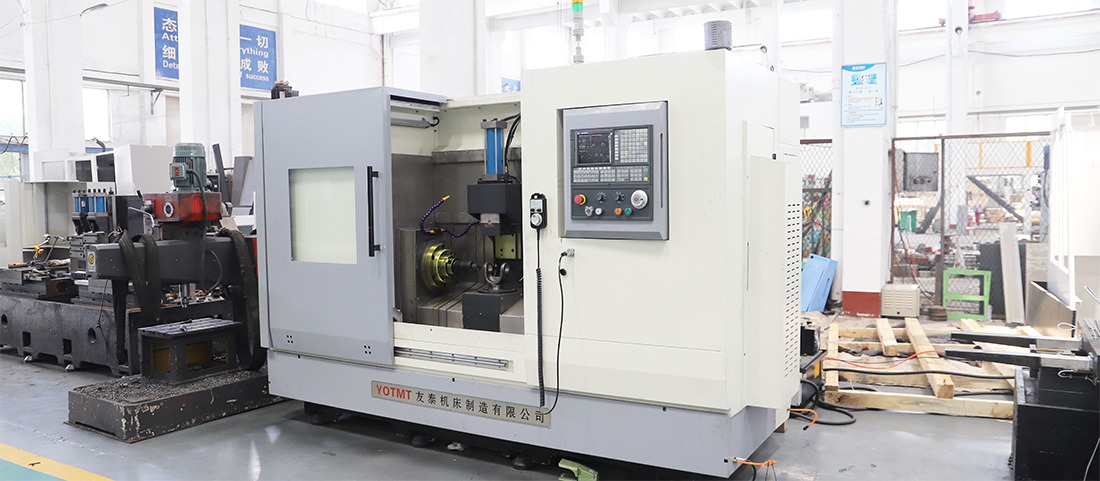

DOUBLE SIDE HEAVY DRILLING MACHINE
Vertical layout, smooth chip removal Heavy duty structural design with stronger rigidity.
Rich optional systems

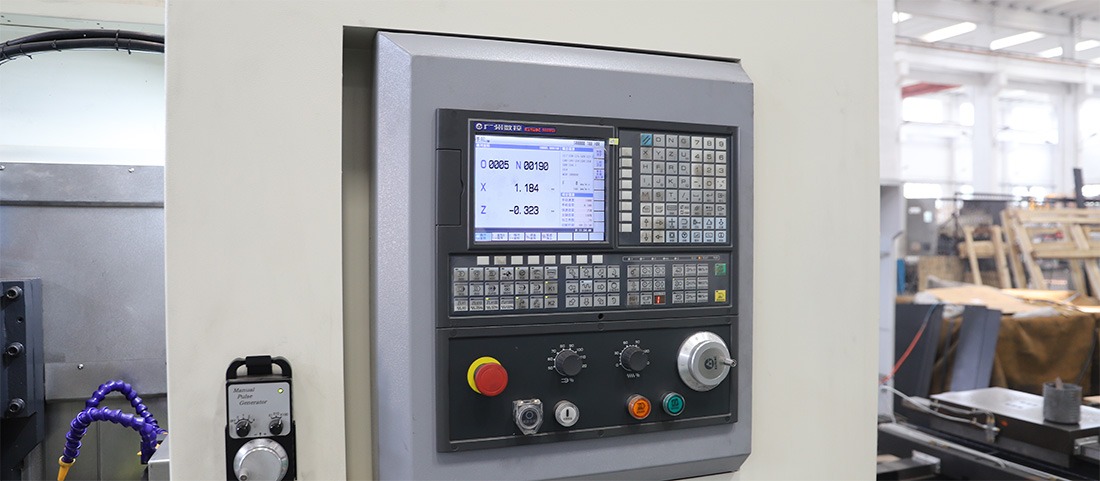

Advanced CNC systems can be optionally equipped to achieve automated and high-precision machining processes. Numerical control technology ensures ease of operation while improving machining efficiency and accuracy.
Product parameters
| ITEM | UNIT | PARAMETER | ||
| Maximum U-drill specification | MM | 80 | ||
| Maximum spindle speed | RPM | ≥1200 | ||
| Fast moving speed | MM | 8000/min | ||
| Spindle taper | / | BT50 | ||
| Power Spindle | KW | 18.5/22kw*2 | ||
| Servo power | KW | 3.0*2 | ||
| Pump station power | KW | 2.2kw | ||
| Pump power | KW | 0.55 | ||
Product Overview

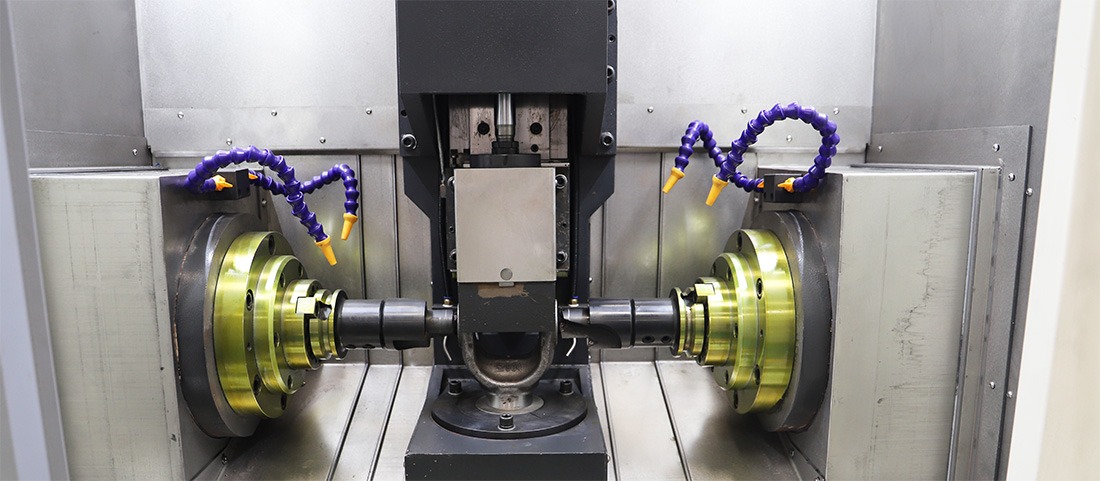

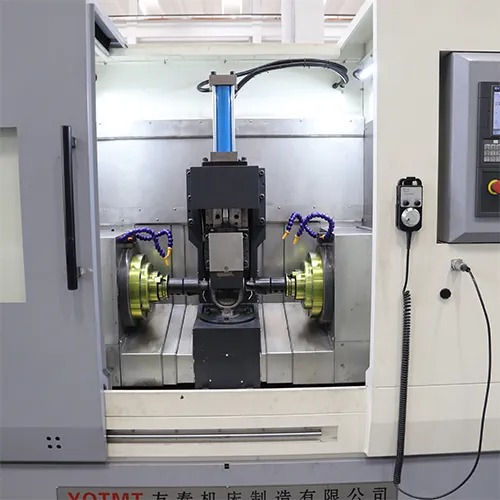

Metal cutting processing: The UZ80 dual head violent drilling machine is mainly used for cutting metal materials. With its powerful cutting ability and dual head design, it can efficiently complete various metal drilling tasks.
General industry applications: This machine tool is suitable for the general industry, which means it can find applications in various industrial fields such as automotive manufacturing, aerospace, mechanical manufacturing, etc., meeting the needs of these industries for high-precision and high-efficiency drilling processing.
