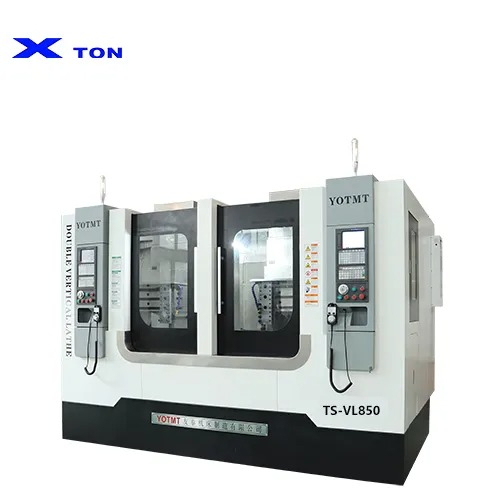

Product Display
Product features
Backrest type pillar
Vertical structure layout, with a backrest type column placed on the bed, increasing the rigidity of the vertical car by more than 50% and enhancing stability.

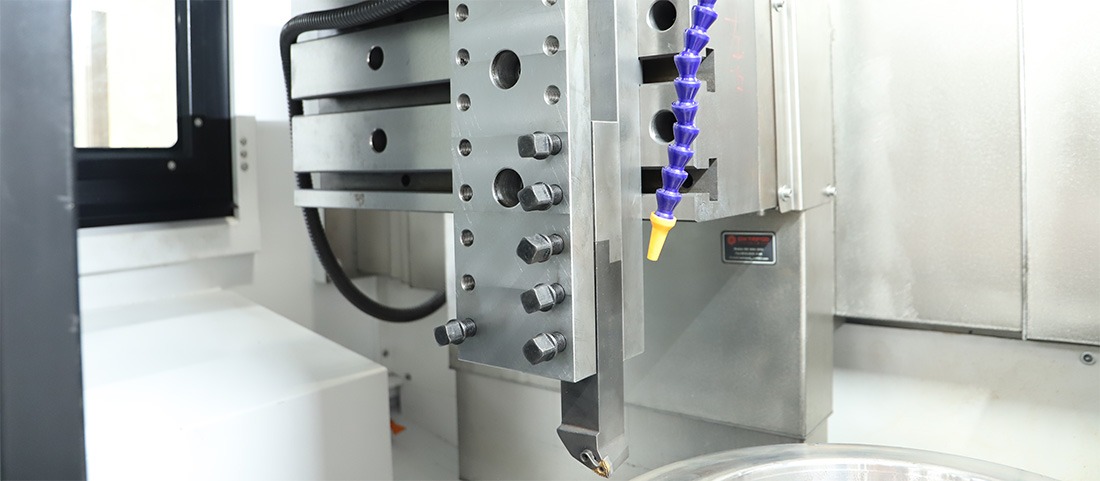

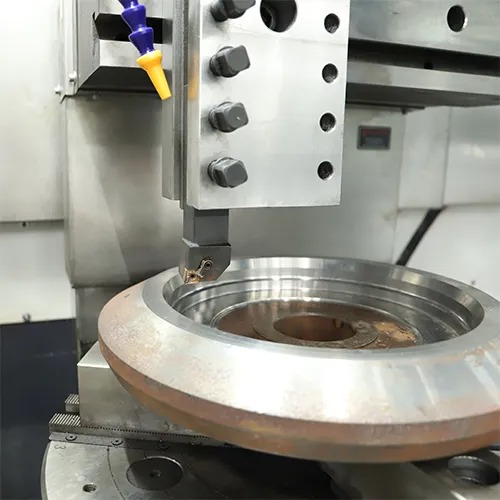

High rigidity knife holder
The equipment comes standard with a 40 blade square row cutter holder, and horizontal or vertical cutter towers can also be selected.
Product parameters
| ITME | UNT | PARAMETER | ||
| MAX. rotation diameter | mm | 860 | ||
| MAX. machining diameter | mm | 800 | ||
| MAX. part height | mm | 700 | ||
| Spindle specification | - | A2-11 | ||
| MAX. spindle speed | - | 1000 | ||
| XZ positioning accuracy | mm | ±0005 | ||
| XZ repeat positioning accuracy | mm | ±0.003 | ||
| Spindle power | kw | 22-30 | ||
Product overview

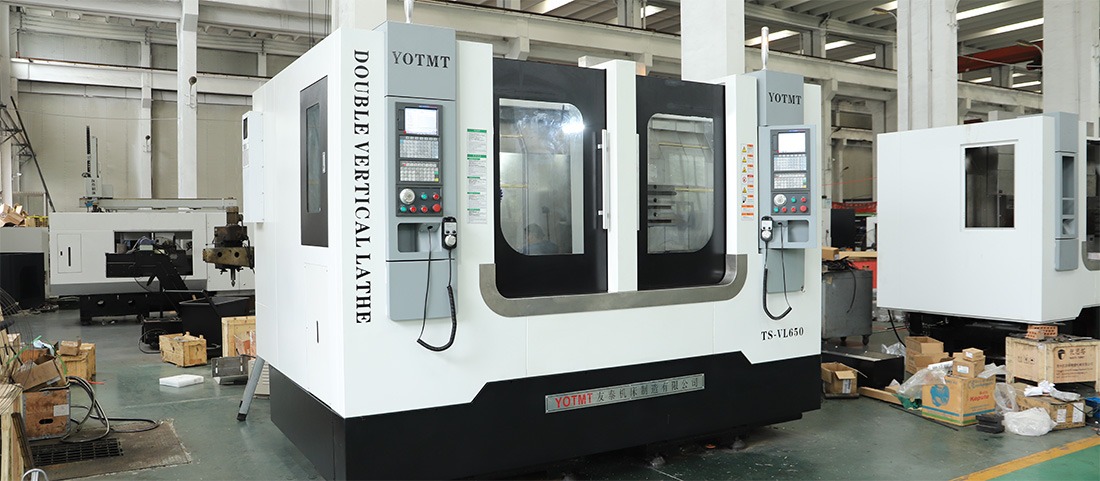

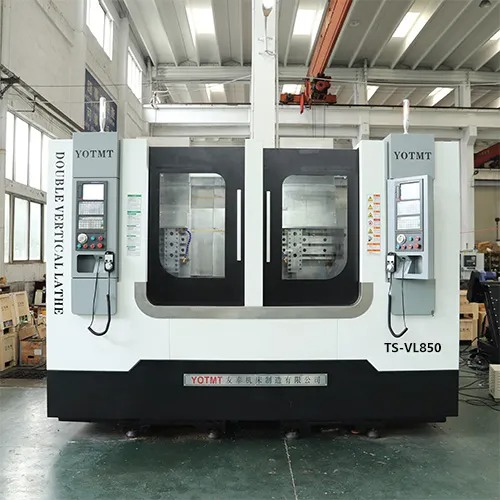

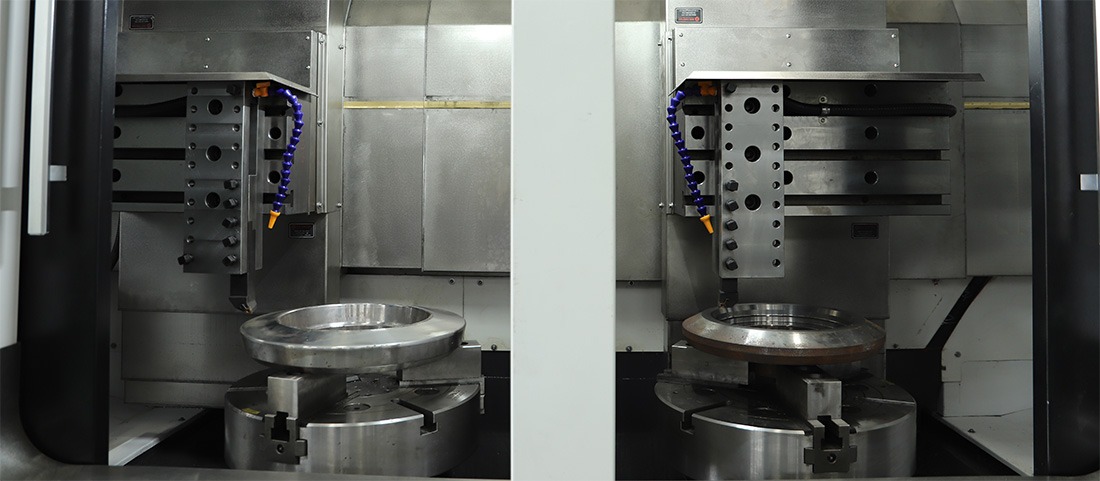

Efficient processing: With a dual spindle design, it can process two workpieces simultaneously, significantly improving processing efficiency and suitable for mass production, reducing production costs.
High rigidity and precision: The large parts of the machine tool are made of high-quality resin molding and high-strength cast iron, and undergo a perfect heat treatment process to ensure that the entire machine has sufficient strength, rigidity, and high stability, ensuring machining accuracy.
Advanced guide rail and screw: using Taiwan's original heavy-duty linear guide rail, with strong rigidity and excellent dynamic accuracy; The three-axis transmission adopts Taiwan made grinding double nut ball screw, which moves smoothly and has high precision.
Powerful processing capability: The workbench has a large size and strong load-bearing capacity, suitable for processing various heavy-duty workpieces; At the same time, the machine tool also has the ability to comprehensively process pre formed workpieces on five surfaces.
Widely applicable: Suitable for processing various materials such as auto parts, molds, aluminum parts, castings, hardware, etc., with a wide range of processing range and applicability.
