Product Display
Product Features
Backrest type pillar
Vertical structure layout, with a backrest type column placed on the bed, increasing the rigidity of the vertical car by more than 50% and enhancing stability.

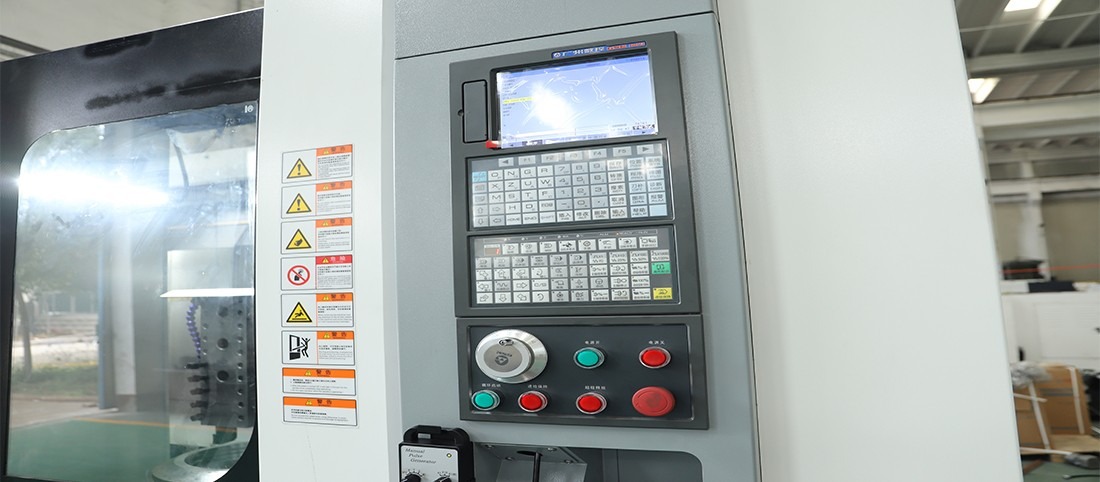

Numerical Control System
Configure an absolute value bus servo control system, which can be processed without returning to zero when turned on.
Product Parameters
| ITME | UNT | PARAMETER | ||
| MAX. rotation diameter | mm | 660 | ||
| MAX. machining diameter | mm | 600 | ||
| MAX. part height | mm | 600 | ||
| Spindle specification | - | K2-11 | ||
| MAX. spindle speed | - | 1500 | ||
| XZ positioning accuracy | mm | ±0005 | ||
| XZ repeat positioning accuracy | mm | ±0.003 | ||
| Spindle power | kw | 18.5-22 | ||
Product Overview
Stable structure: The column adopts a backrest type pillar, which is stable and heavy, ensuring the stability of the machine tool during the processing.
High precision spindle system: The spindle adopts Taiwan BT30 tool holder drilling and tapping center special spindle, with good rigidity, high precision, and a maximum speed of 20000r/min.
Efficient automatic tool changing system: equipped with 21 inclined disc tool magazines from Dejie, the tool changing speed is only 1.5 seconds, improving machining efficiency.
