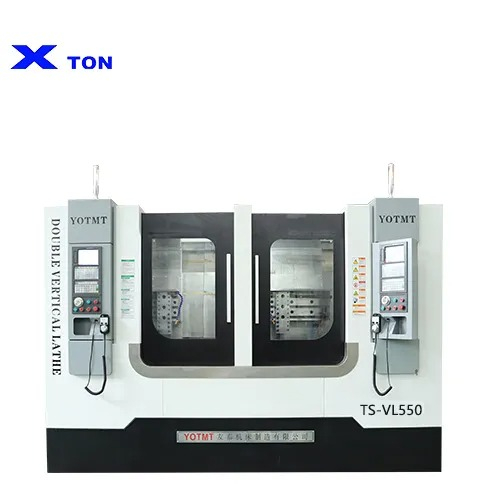

Product Display
Product features

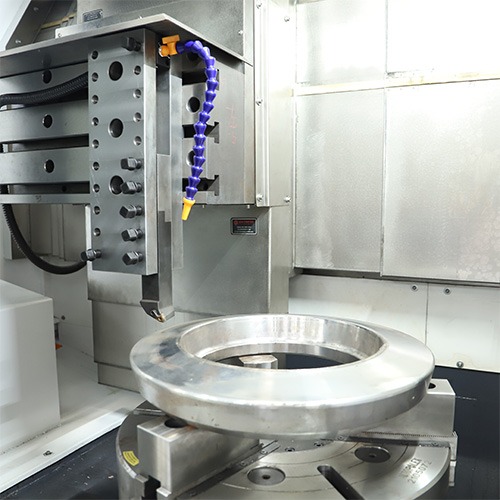

Chip removal performance
The body design focuses on chip removal performance, and the open chip removal port allows the cut iron chips to flow directly into the chip hopper.

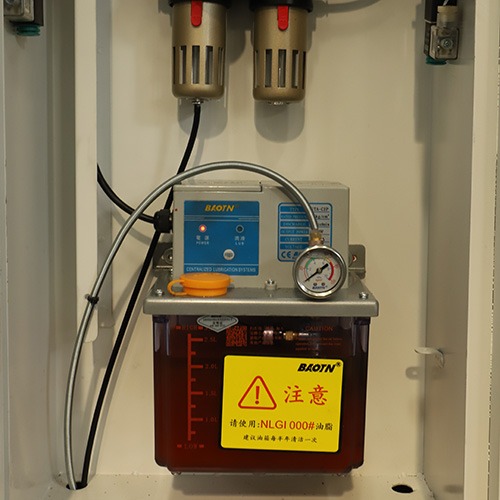

Volume lubrication method
Stable lubrication for longer distances, protecting the guide rail and screw, and extending their lifespan.
Product parameters
| ITME | UNT | PARAMETER | ||
| MAX. rotation diameter | mm | 560 | ||
| MAX. machining diameter | mm | 500 | ||
| MAX. part height | mm | 200/400 | ||
| Spindle specification | - | A2-8 | ||
| MAX. spindle speed | - | 2500 | ||
| XZ positioning accuracy | mm | ±0005 | ||
| XZ repeat positioning accuracy | mm | ±0.003 | ||
| Spindle power | kw | 15-18.5 | ||

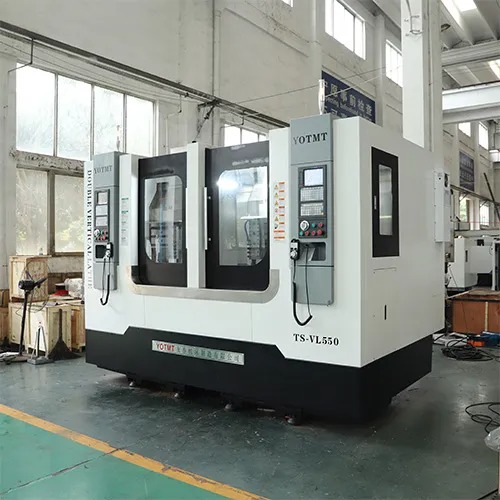

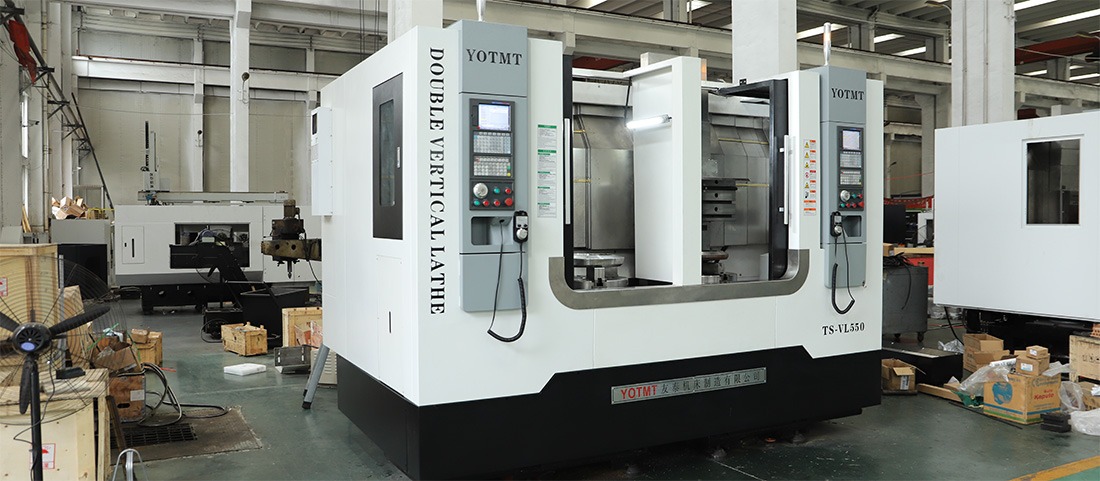

Product overview
Comprehensive protection and lubrication system: Each guide rail of the machine tool adopts a closed protective cover to prevent corrosion; At the same time, a centralized timed and quantitative lubrication system is adopted to ensure the flexibility and reliability of moving parts.
Wide range of applications: CNC vertical lathes are commonly used for processing heavy-duty workpieces such as automotive wheel drums and brake discs due to their vertical structure, strong load-bearing capacity, and good rigidity, making them particularly suitable for heavy cutting.
