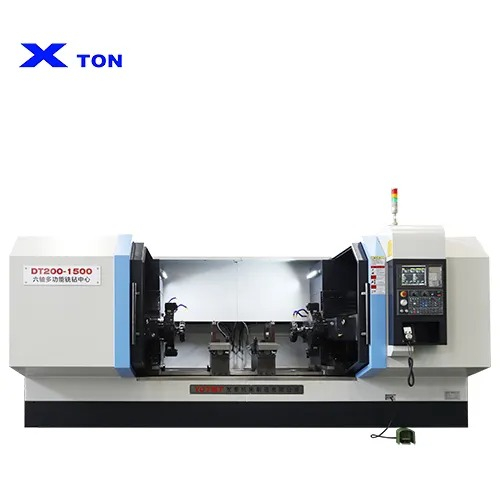

Product Display
Product Features

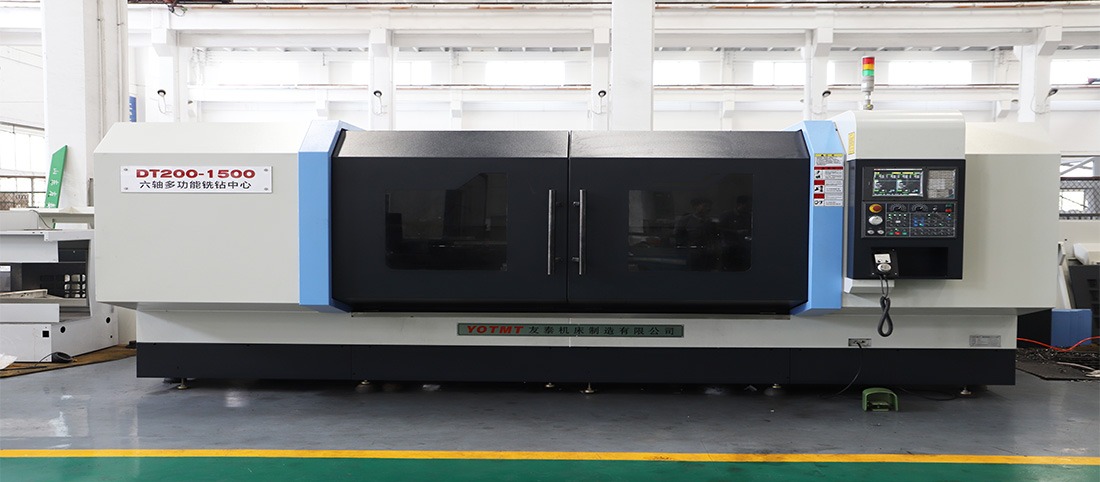

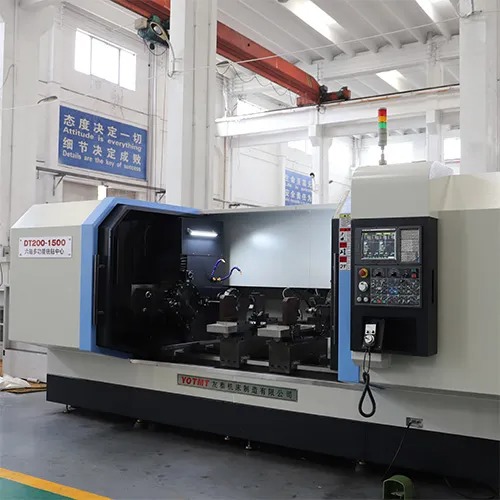

Six axis mobile machining

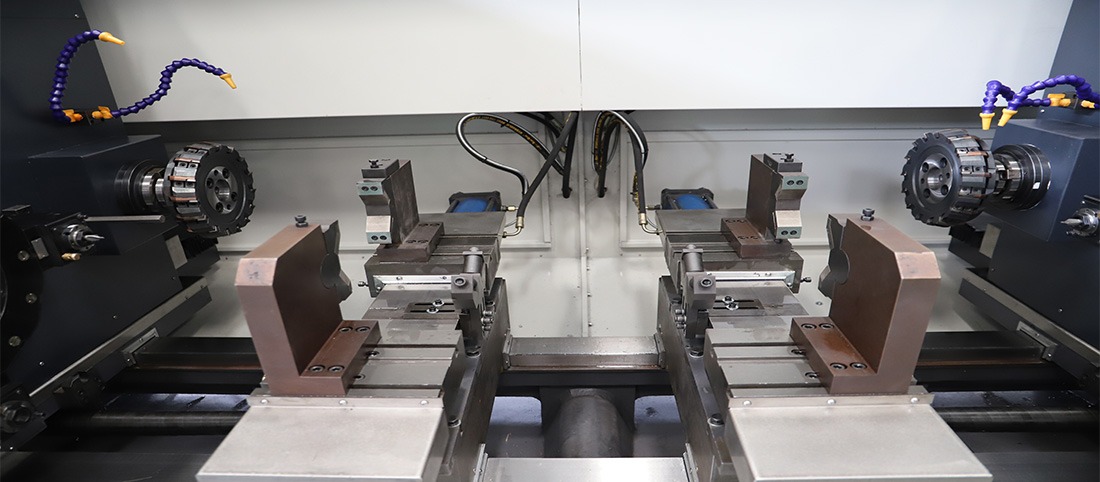

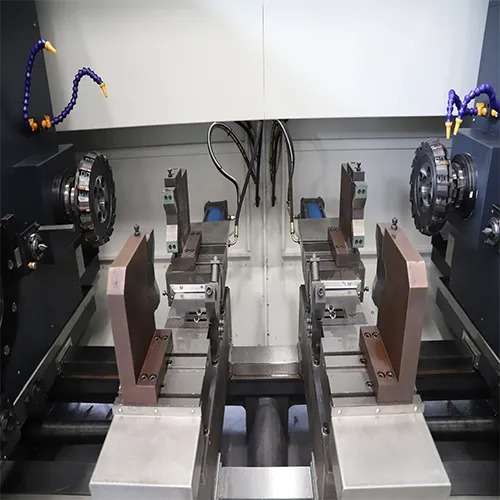

Can perform drilling, tapping, reaming, chamfering, and other processing on shaft and flange end faces.

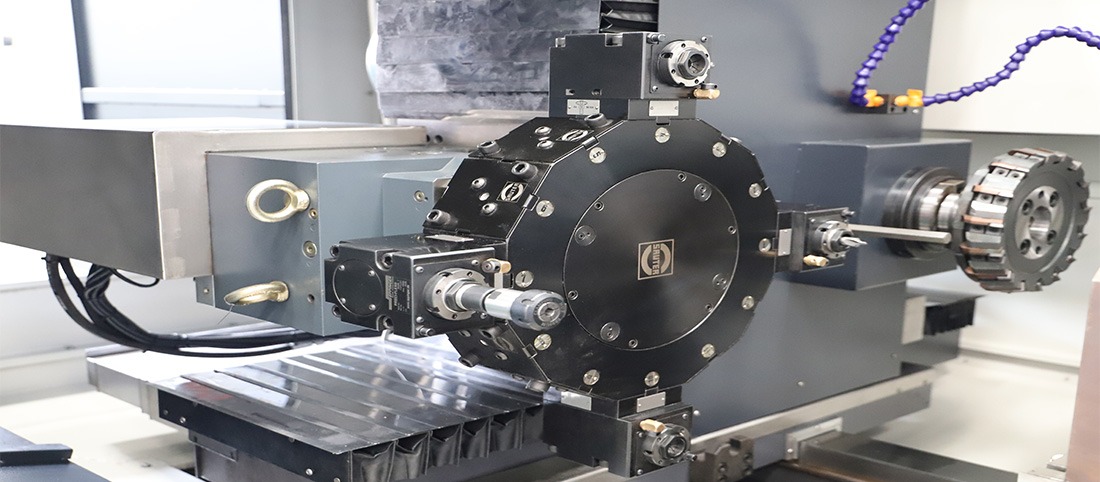

Heavy milling power head
Can perform high rigidity milling, with a maximum of 8 workstations, a maximum drilling of 26mm, and a maximum tapping of M20.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-3000 | ||
| Milling diameter range | mm | φ15-200 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Three-axis repeated positioning accuracy | mm | 0.006 | ||
| Spindle speed | rpm | 200-1500 | ||
| Drilling capacity | mm | φ30 | ||
| Center hole depth consistency | mm | ±0.03 | ||
Product Overview
Versatile functions: This machine tool has multiple functions such as milling, drilling, threading, chamfering, and tapping, and is suitable for metal forming processing.
Efficient and stable: The spindle speed range is wide, the maximum milling volume per unit is large, and the machining accuracy is high, resulting in high production efficiency and stable precision.
Advanced structure: The machine tool adopts a six axis design with a horizontal layout, suitable for processing metal materials, and has the characteristics of a multifunctional axis milling machine.
Enterprise strength: X Ton focuses on the design, manufacturing, sales, and service of machine tools, with rich production experience and strong technical strength.
