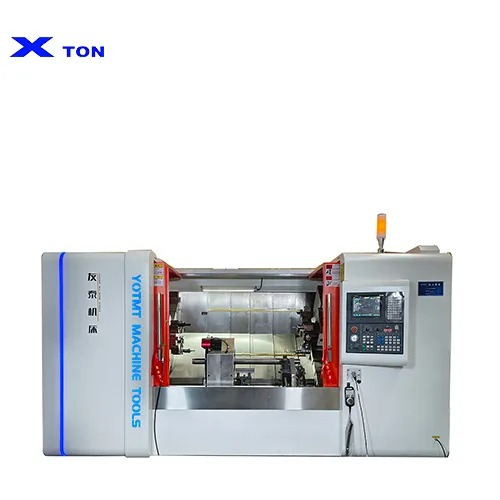

Product Display
Product Features

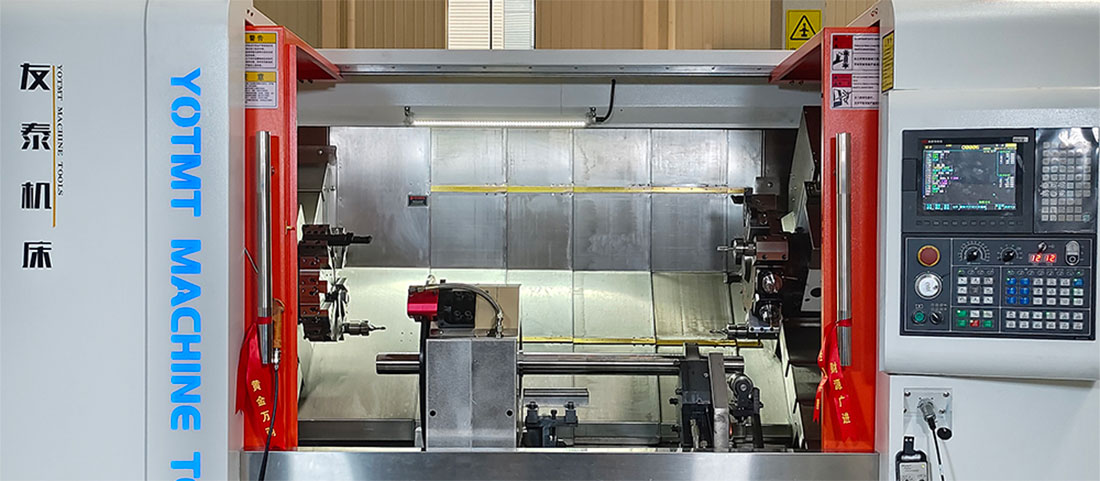

45 ° oblique layout

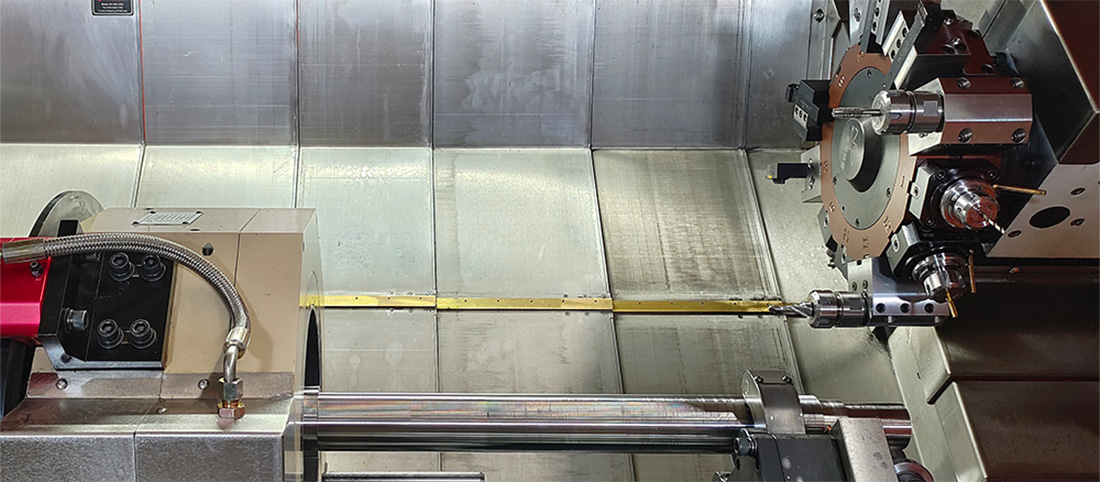

On the sliding table that moves left and right, place an 8-station turret on each side, with axial positioning on one side and feeding using a support+cylinder thrust method on the other side. The spindle is driven by a 7.5/11kw servo motor.

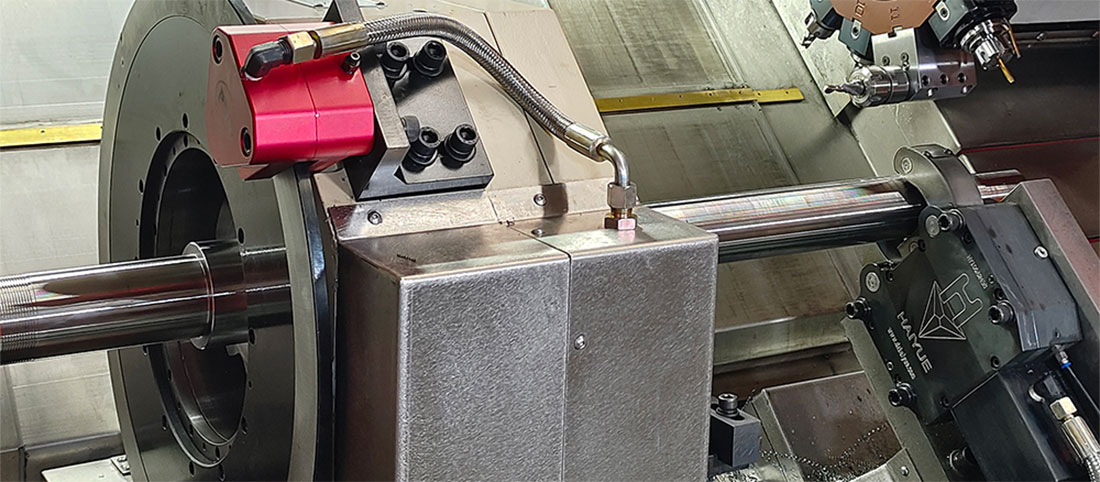

Servo movable hydraulic center frame
Coaxiality can reach 0.01mm, equipped with a servo movable hydraulic center frame, with a wider range of processing lengths for easy adjustment.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Number of tool rest stations | 4/8/12 | |||
| Max.processing length | mm | 1000 | ||
| Max.processing diameter | mm | 200 | ||
| Max.spindle speed | mm | 2000/1500 | ||
| Spindle power | kw | 7.5/11 | ||
| X/Z axis rapid movement speed | mm/min | 20000 | ||
Product Overview
High precision: The machine tool adopts a sleeve type spindle and ultra precision spindle bearings to ensure high rigidity and long-lasting accuracy of the spindle.
Powerful processing capability: The machine tool adopts high rigidity cast iron and a 45 degree inclined bed structure, with smooth chip removal and compact structure. The maximum processing length can reach 1000mm，suitable for processing large workpieces.
