Product Display
Product Features
Smooth chip removal structure
90 degree vertical structure The longer the loading distance of 200mm

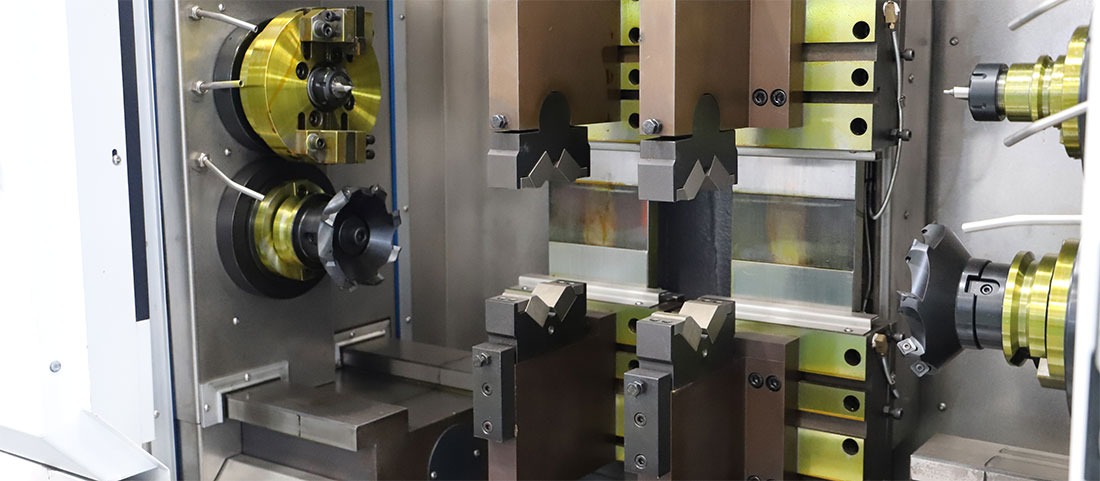

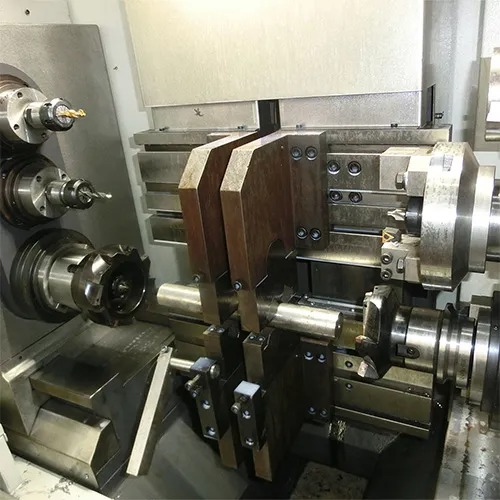

Hydraulic original hydraulic self centering vise
Equipped with fine adjustment function for the center height of the jaw Equipped with an axial automatic positioning system, which eliminates the need for tool alignment when replacing workpieces
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 100-600 | ||
| Milling diameter range | mm | φ15-100 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ100 | ||
| Rigid tapping | mm | M20 | ||
| U drill | mm | φ40 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Shandong X Ton Machine Tool Manufacturing Co., Ltd., located in Zaozhuang, Shandong, is a comprehensive enterprise specializing in the design, manufacturing, sales, and service of machine tools.

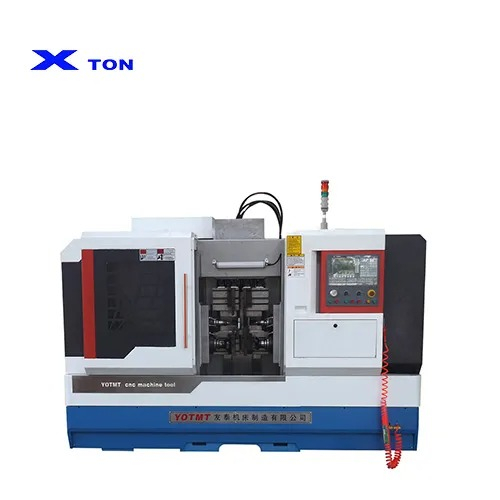

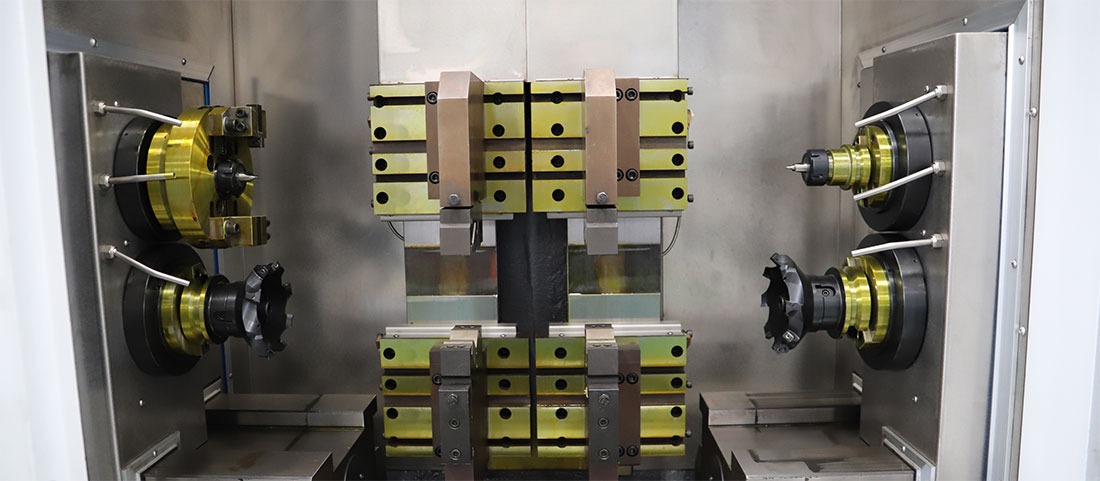

Machine type: Vertical milling end face drilling center hole machine, which is a specialized machine tool for the first process of mass production of shaft parts.
Product features: This machine tool has the characteristics of convenient chip removal and close material handling distance, and there are multiple models and specifications to choose from, such as ZKLS-600.
Application areas: Widely used in various mechanical processing fields, especially suitable for processes that require precise milling and drilling.
Service and Support: X Ton Company provides comprehensive pre-sales consultation and after-sales service to ensure that customers receive timely technical support and maintenance during use.
