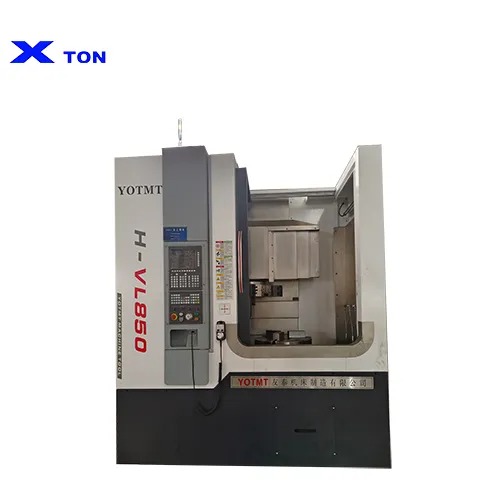

Product Display
Product Features

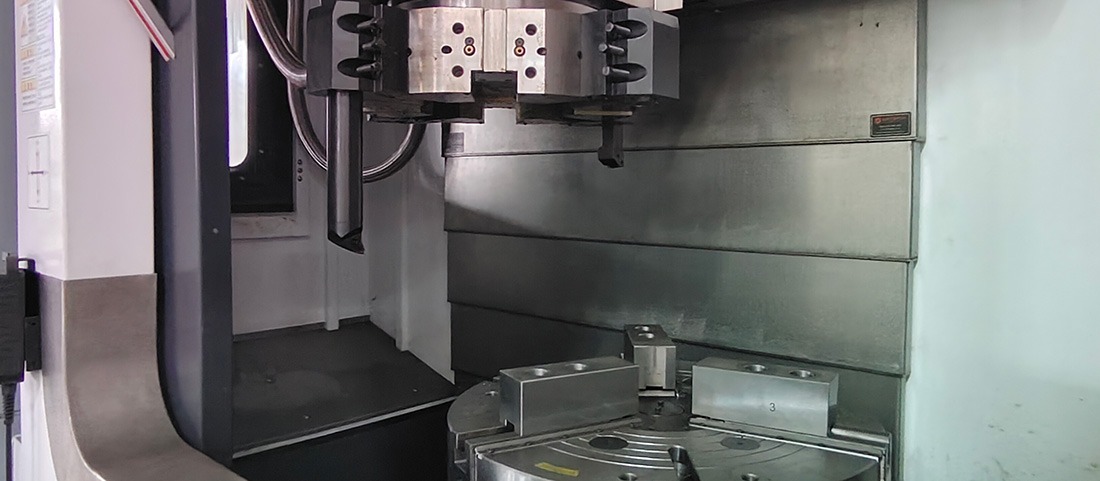

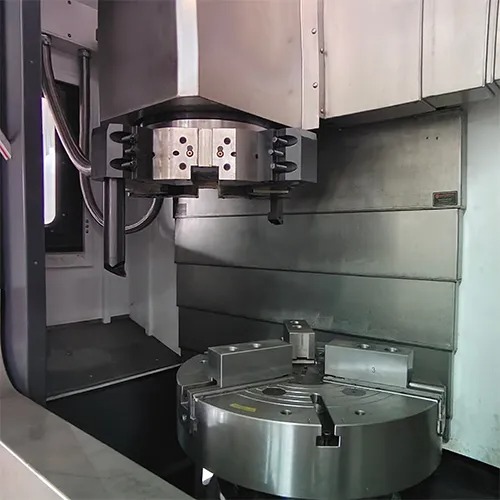

Multi station horizontal turret (optional)
Adopting A2-11 high-precision spindle unit and bearing model high rigidity series combination bearing assembly method, it has super rigidity and meets the characteristics of high-precision machining.

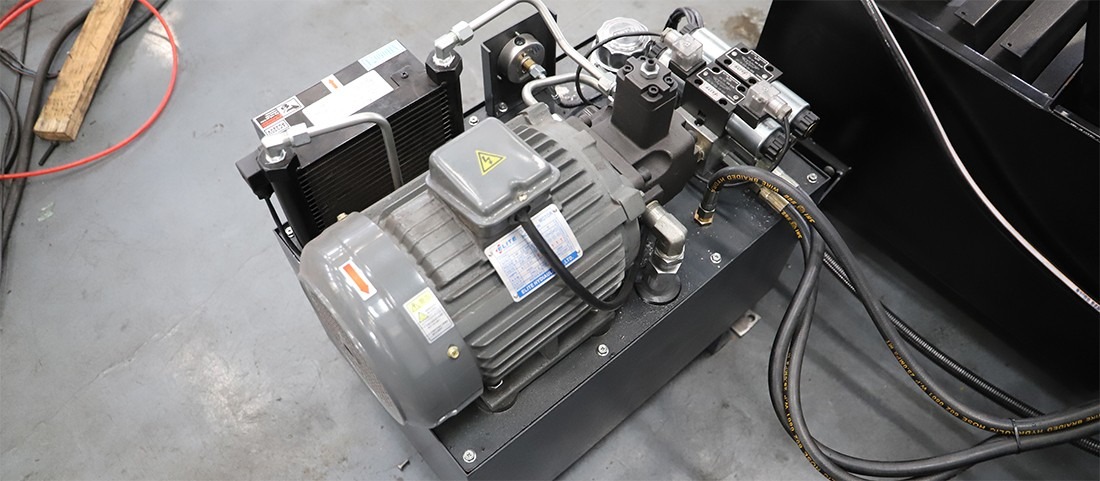

Powerful powertrain combination
Spindle output torque 560-1000N. m
The X/Z axis adopts 23/27N m
Product Parameters
| ITEM | UNIT | Parameters | ||
| Number of tool rest stations | 4/8/12 | |||
| Max.processing length | mm | 650/1000 | ||
| Max.processing diameter | mm | 850 | ||
| Max.spindle speed | mm | 50-1000 | ||
| Spindle power | kw | 22 | ||
| X/Z axis rapid movement speed | mm/min | 20000 | ||
Product Overview
High precision and efficiency: This machine tool adopts a three-axis linear slide rail, which has high rigidity, high positioning accuracy, low noise and low friction characteristics, and can achieve fast displacement and optimal circular accuracy.
Meanwhile, equipped with high-precision and high rigidity spindles from Taiwan, ensuring high precision and efficiency during the machining process.
