XSC
Xtonx
Product Display
Product Features

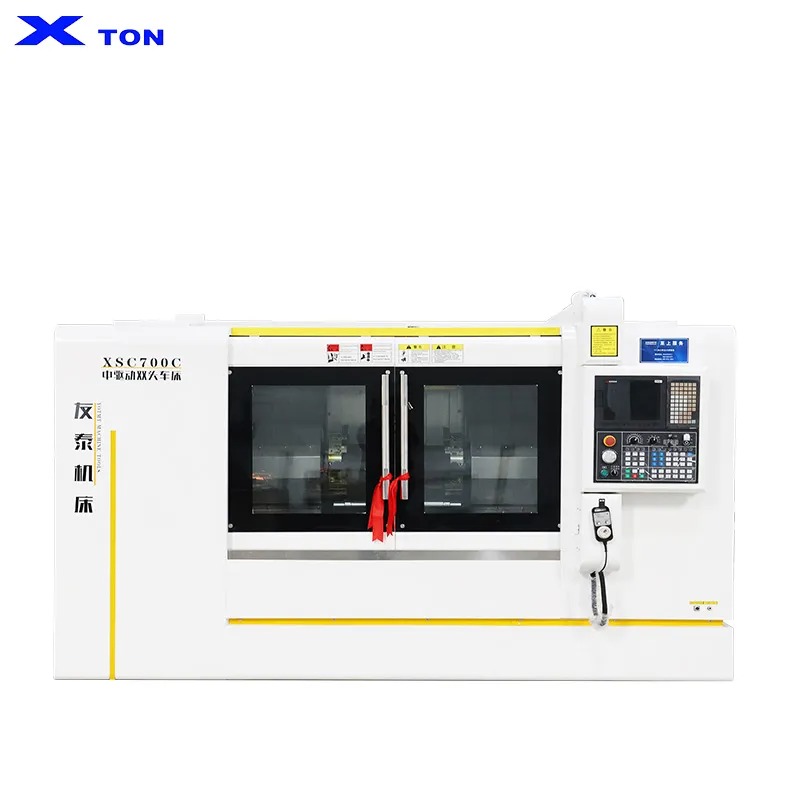

The X Ton world-leading Dual Turrets Lathe solution engineered for high-efficiency precision CNC Lathe for Turning, featuring synchronized dual-turret machining and 45° inclined bed structure to complete full operations in single setup.
45 ° overall inclined bed structure
Adopting a 45 ° overall inclined bed structure, HT300 advanced resin sand casting technology, finite element analysis calculation, reasonable reinforcement rib structure, and strict secondary aging treatment.

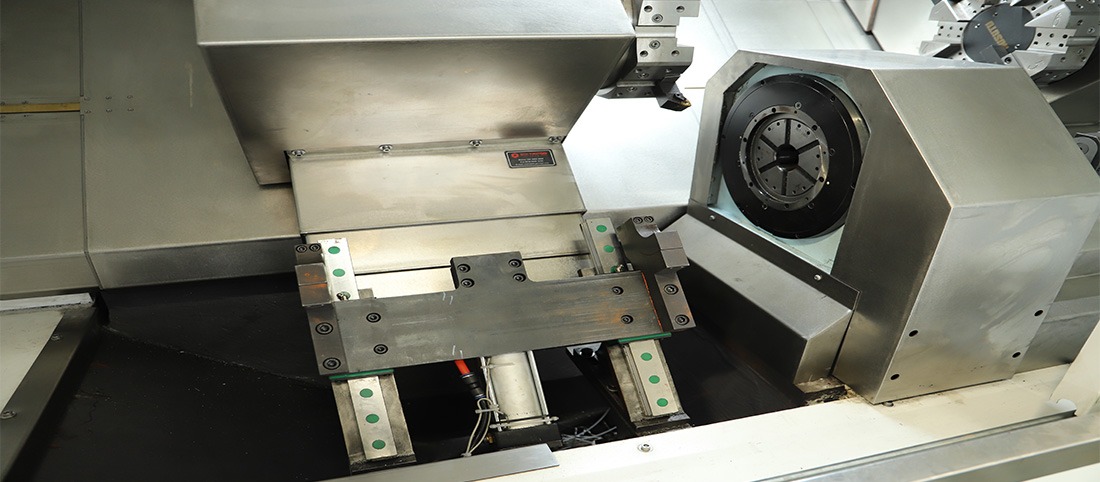

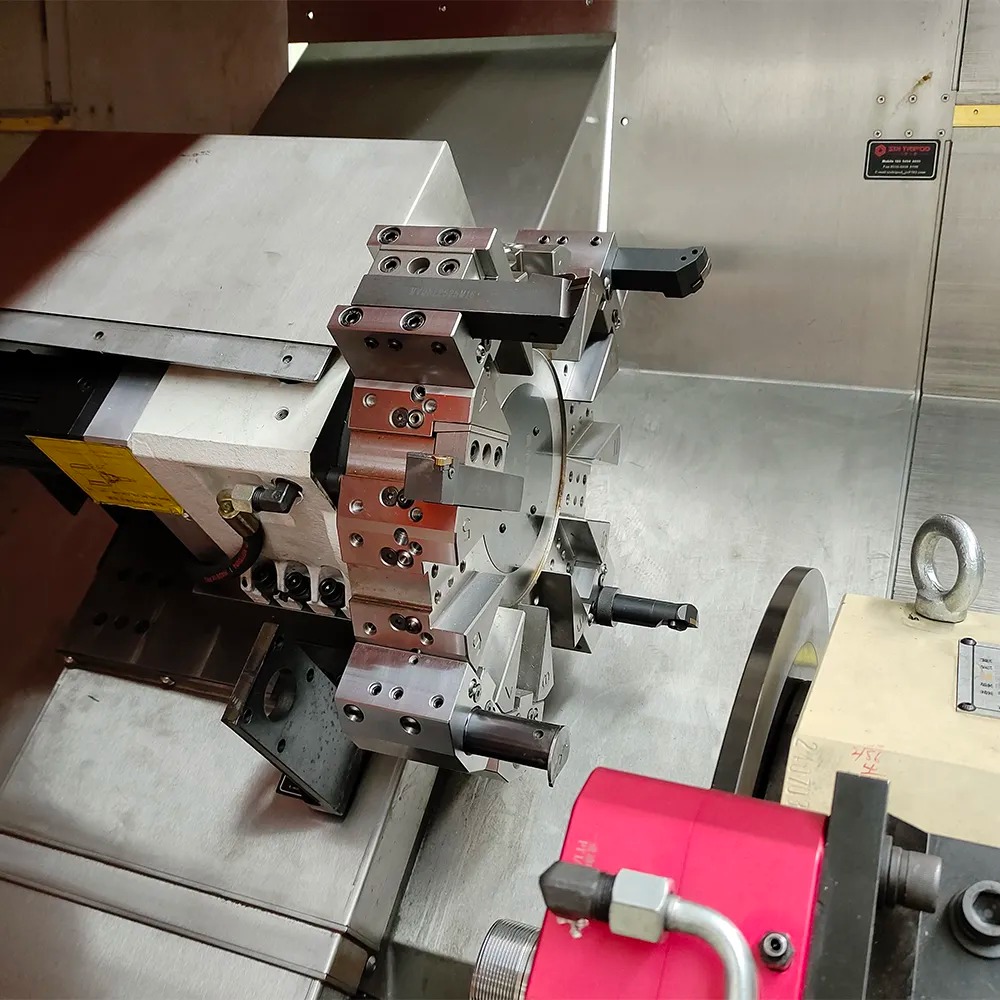

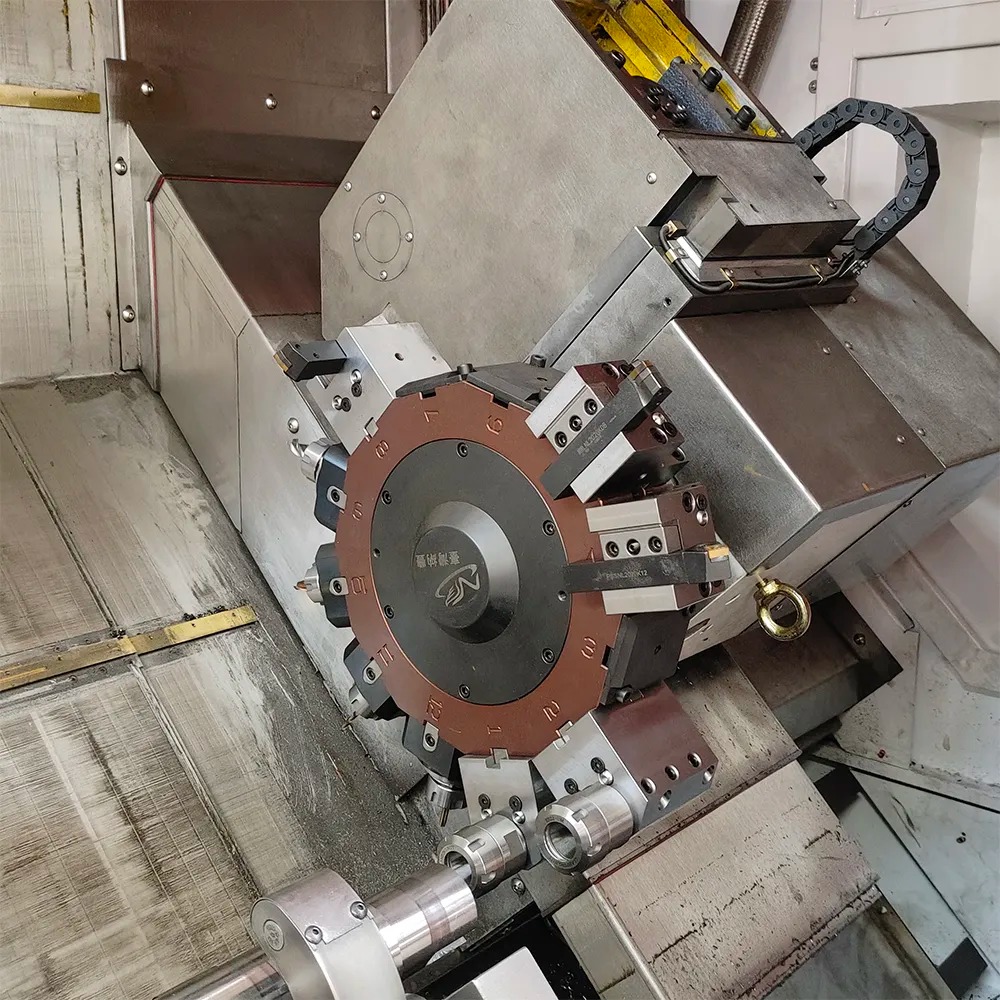

Dual Turrets Lathe Structure
The mid - drive double - head lathe achieves a leap in processing efficiency with the coordinated operation of the Dual Turrets Lathe dual turrets and the numerical control automation of CNC Lathe for Turning. The dual turrets can simultaneously perform different processes, and the numerical control system precisely plans the processing path, reducing auxiliary time. When mass - producing complex parts, the efficiency can be increased several times compared with traditional equipment.
Machine tool protection
The machine tool adopts fully enclosed protection, and the interior is treated with stainless steel enclosed protection through electrostatic spraying technology, which is beautiful and elegant.
Product Parameters
ITEM | UNIT | XSC500D | XSC700C | XSC800 |
Number of tool rest stations | 4/8/12 | 4/8/12 | 4/8/12 | |
Max.processing length | mm | 500 | 700 | 850 |
Max.processing diameter | mm | 160 | 200 | 200 |
Max.spindle speed | mm | 2000/1500 | 2000/1000/500 | 2000/1000/500 |
Spindle power | kw | 7.5/11 | 11/15 | 11/15 |
X/Z axis rapid movement speed | mm/min | 20000 | 20000 | 20000 |
