Product Features
45 ° overall inclined bed structure

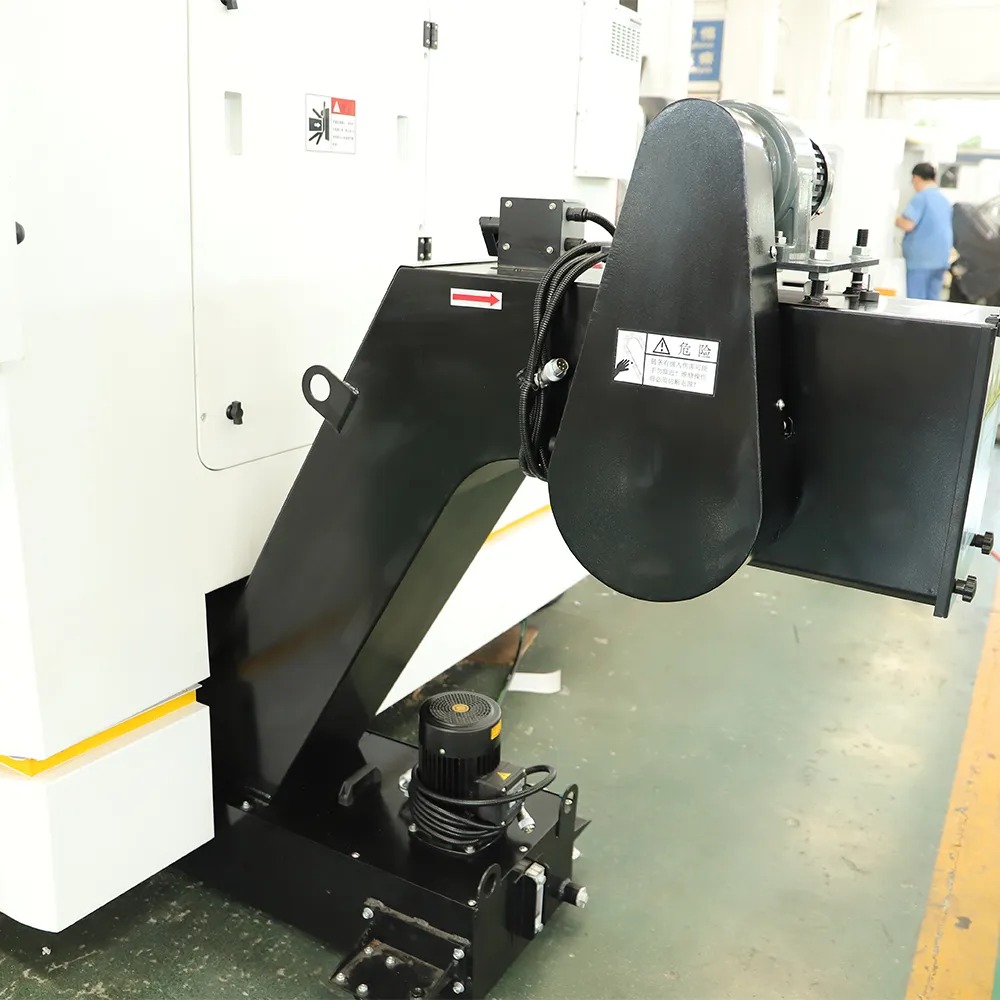

45 ° Overall Inclined Bed Lathe With a 45° overall inclined bed layout, this design offers excellent rigidity. Compared with the traditional horizontal bed, the 45 ° Overall Inclined Bed Lathe structure can better withstand cutting forces, reduce the vibration of the machine tool during processing, and thus ensure machining accuracy. At the same time, the inclined bed is conducive to the automatic discharge of chips. Through the action of gravity, chips can quickly slide into the chip removal device, avoiding the interference of chip accumulation on the processing process and greatly improving the continuity and stability of processing. The bed is usually made of high - strength cast iron, and through strict casting processes and aging treatment, its structure is stable and not prone to deformation during long - term use.
Automation function
Configure automatic axial positioning, workpiece positioning detection, automation interface, automatic counting and other functions.
Machine tool protection
The machine tool adopts fully enclosed protection, and the interior is treated with stainless steel enclosed protection through electrostatic spraying technology, which is beautiful and elegant.
Product Parameters
| ITEM | UNIT | XSC500D | XSC700C | XSC800 |
| Number of tool rest stations | 4/8/12 | 4/8/12 | 4/8/12 | |
| Max.processing length | mm | 500 | 700 | 850 |
| Max.processing diameter | mm | 160 | 200 | 200 |
| Max.spindle speed | mm | 2000/1500 | 2000/1000/500 | 2000/1000/500 |
| Spindle power | kw | 7.5/11 | 11/15 | 11/15 |
| X/Z axis rapid movement speed | mm/min | 20000 | 20000 | 20000 |
Product Overview

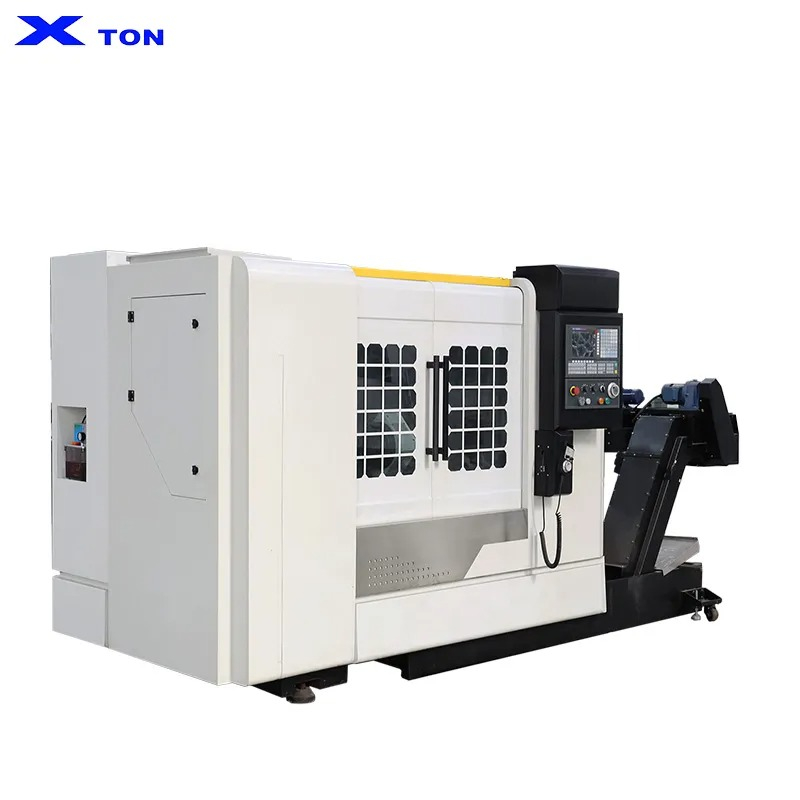

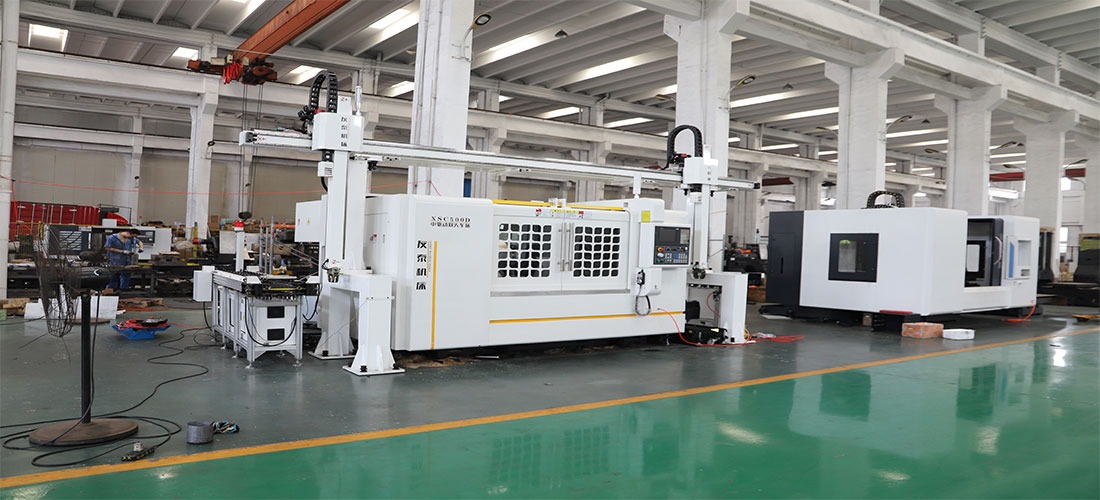

The X Ton mid - drive double - head lathe, as an important equipment in the field of advanced manufacturing, integrates a variety of innovative technologies and stands out in the machining industry with its excellent performance. It mainly includes key features such as Double Sided Lathe, 45 ° Overall Inclined Bed Lathe, and CNC Lathe Power Turret, enabling efficient and high - precision machining of various complex parts.
1. 45° Overall Inclined Bed Lathe
*Rigidity enhancement: Triangular mechanical support + low center of gravity design, vibration resistance ↑35%*
Precision guideways: Linear roller guides, repeat positioning accuracy ±0.003mm
*Intelligent synchronization: C-axis closed-loop control, shaft straightness ≤0.02mm/m*
*Hydraulic clamping: Max holding diameter Ø400mm (DSL-400 model)*

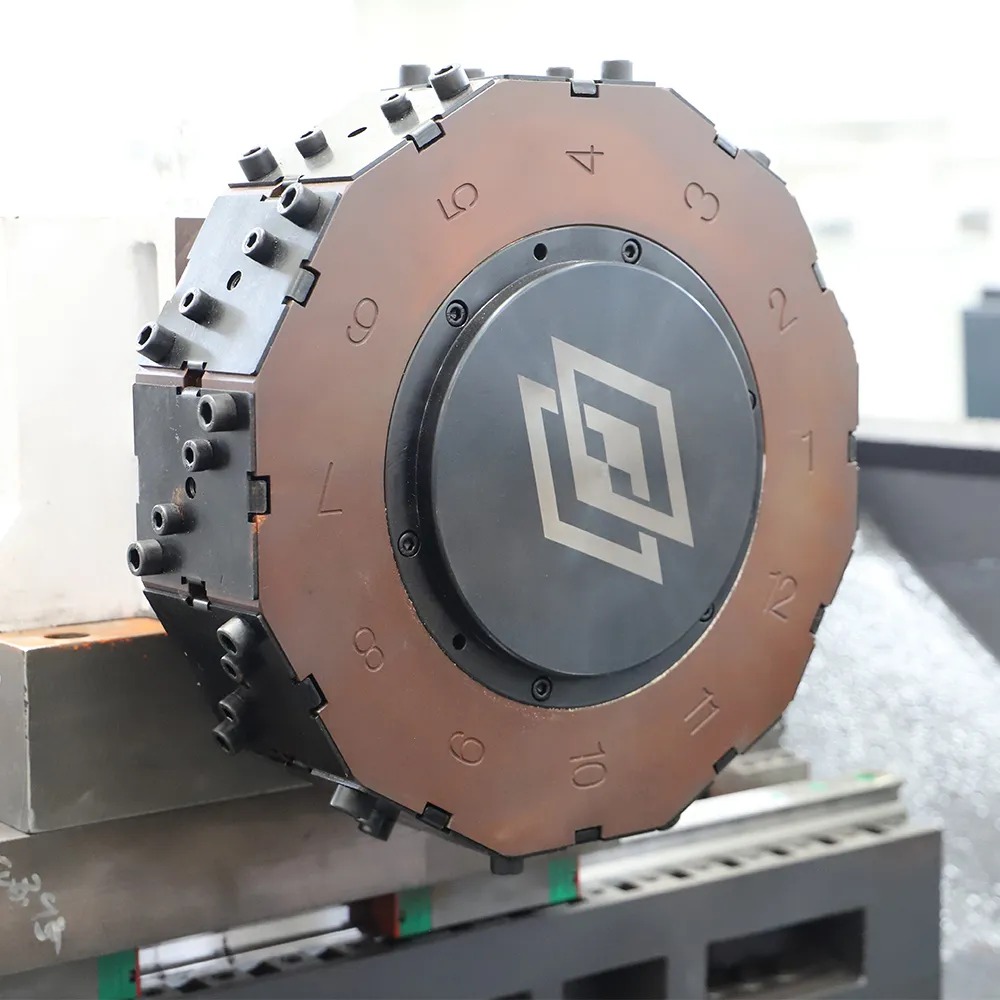

*12-station live tools: Radial/axial milling capability (standard 10,000rpm)*
*Quick-change interface: HSK tool holder change time 0.3s*
