Different diameter workpieces? One device can handle it

Different diameter workpieces? One device can handle it

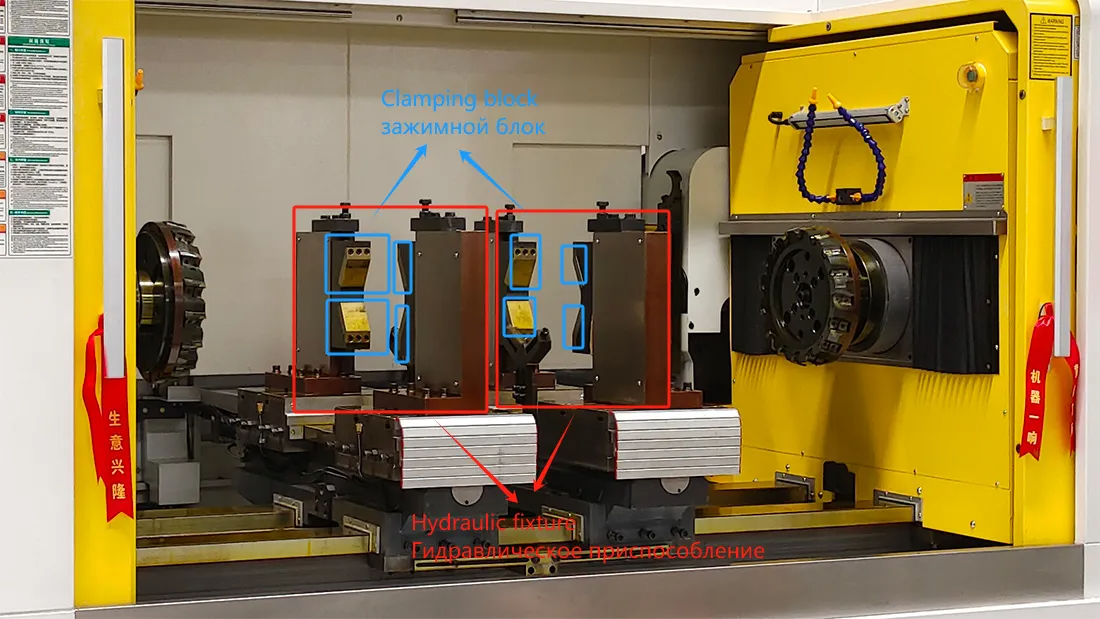

Many customers may ask, can workpieces of different diameters be processed with one cnc machine? The answer is affirmative. Our hydraulic fixture has four clamping blocks, which can be disassembled and replaced with clamping blocks of different thicknesses to meet the machining needs of workpieces of different diameters. Our company's cnc machine focus on efficient dual end machining cnc machine of workpieces, and the  hydraulic fixture structure is a major highlight. While colleagues are still frequently changing  hydraulic fixture for workpieces of different diameters, X TON's hydraulic quick change system has achieved single equipment coverage for workpieces ranging from 50 to 300mm. The core breakthrough lies in:

• cnc machine Four module combination technology

1. Comes standard with 3-4 sets of clamping blocks of different thicknesses

2. Covering 16 clamping specifications through arrangement and combination (measured adaptation tolerance ± 0.03mm)

• cnc machine Fine tuning the revolution

1. Unique jaw center height adjustment function

2. Compared to traditional  hydraulic fixture, the adjustment time has been reduced from 30 minutes to ≤ 2 minutes (with a 93% increase in efficiency)

• cnc machine Accuracy guarantee

1. Front and rear adjustment guide rail built-in laser scale (operator visual accuracy 0.01mm)

2. Eliminate positioning deviation caused by manual tapping

 Do you have any special cnc machine workpiece requirements?

→ Send workpiece drawings via private message to obtain customized  hydraulic fixture solutions
