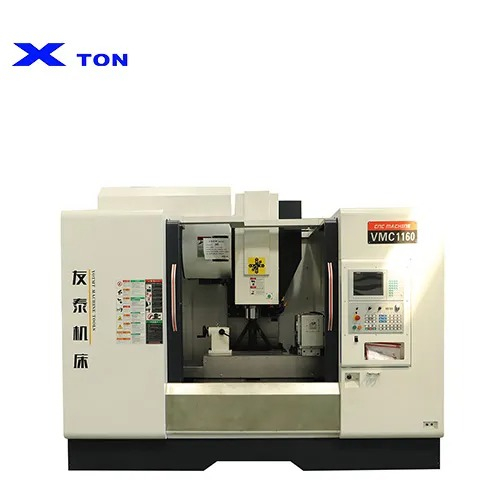

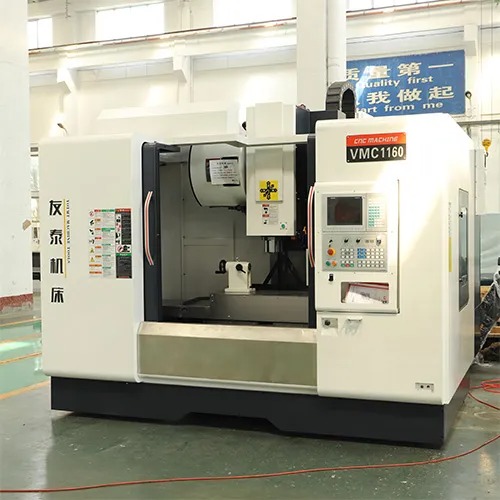

Product Display
Product Features
Standard spindle speed 10000rpm
The standard machine adopts a high horsepower spindle motor. The connection between the spindle and motor belt significantly reduces transmission noise and heat generation.

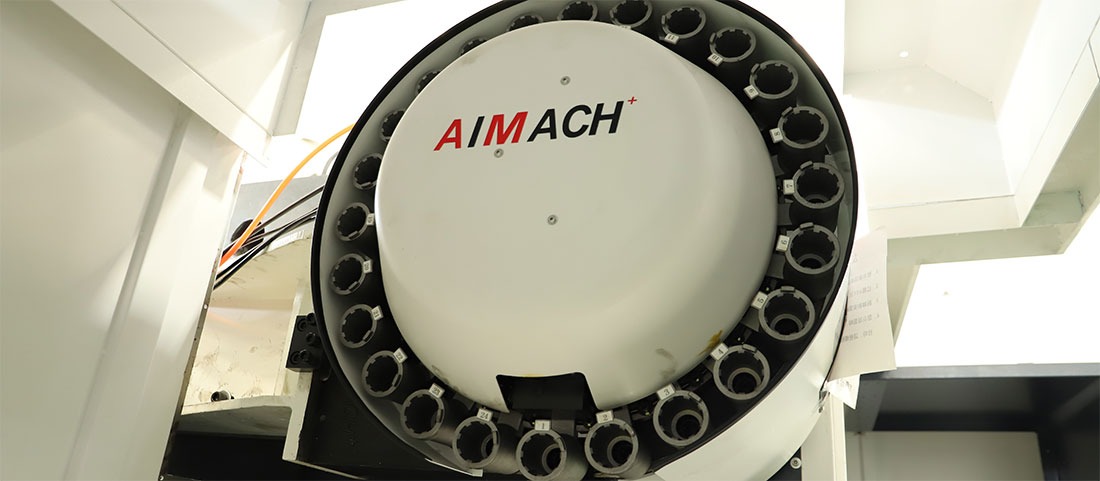

Tool switching device
Advanced cam type drive mechanism, tool selection capability at any position, can be quickly achieved by PLC software control.
Product parameters
| ITEM | UNIT | PARAMETER | ||
| 3-axis travel(x/Y/z) | mm | 1300/700/700 | ||
| Distance from spindle end face to table | mm | 120-720 | ||
| Distance from spindle center to column guideway | mm | 650 | ||
| Table T-slots (number - size x spacing) | mm | 5-18x100 | ||
| Spindle taper hole (model/installation size) | mm | BT40 | ||
| Spindle speed | mm | 8000 | ||
| X/Y/Z axis rapid traverse speed | mm | 24/24/24 | ||
| 3-axis positioning accuracy | mm | ±0.01 | ||
| 3-axis repeat positioning accuracy | / | ±0.005 | ||
| Main motor power | Ra | 11/15 | ||
| Worktable size | mm | 600X1200 | ||
| Optical machine net weight approx | mm | 7000 | ||
Product Overview
Core components: Adopting Taiwan's original high-precision and high-strength ball screws, as well as imported locking nuts, to ensure the positioning accuracy and repeatability accuracy of the machine tool.
