Product Display
Product Features

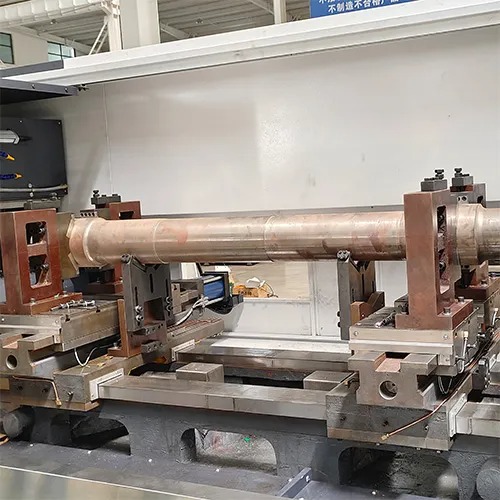

Bidirectional self centering hydraulic fixture
Convenient clamping, strong clamping force, adaptable to processing workpieces of different specifications, with fine adjustment function for the center height of the jaw.

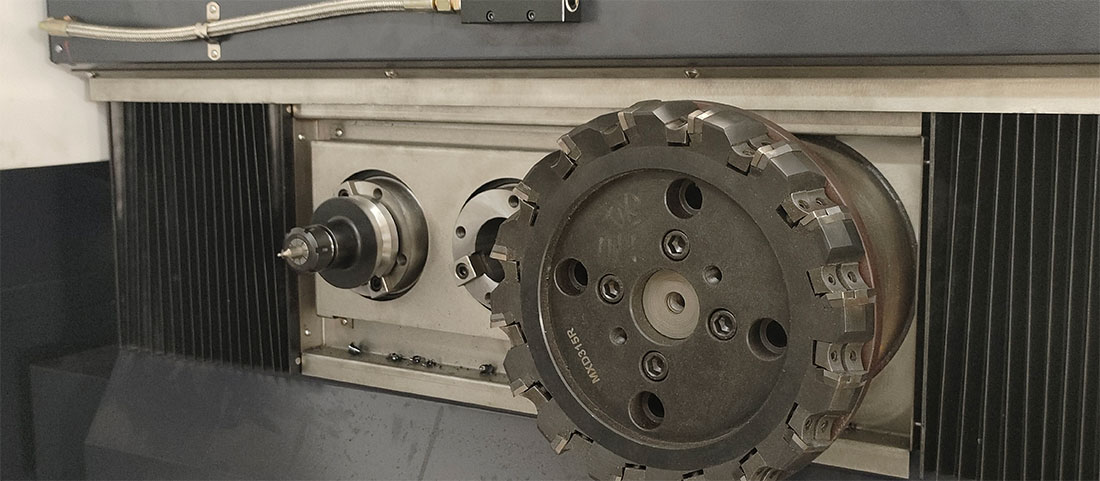

Outer circle combination cutting tool
Dual spindle power head structure, stronger flexibility, compact structural design, high cost-effectiveness, and strong practicality.
Product Parameters
| ITEM | UNIT | Parameters | ||
| Processing length range | mm | 200-3000 | ||
| Milling diameter range | mm | φ30-300 | ||
| Max.milling single side | mm | 5 | ||
| Milling overall length consistency | mm | ±0.05 | ||
| Center hole depth consistency | mm | 0.05 | ||
| Both ends face center hole beating | mm | 0.03/φ50 | ||
| Milling face roughness | Ra | 3.2 | ||
| Center hole roughness | Ra | 1.6 | ||
| OPTIONAL CONTENT | ||||
| Outer diameter turing | mm | φ250 | ||
| Rigid tapping | mm | M36 | ||
| U drill | mm | φ60 | ||
| Chip conveyor | OPTIONAL | |||
Product Overview
Efficient processing: The X Ton train axle dedicated milling machine adopts advanced processing technology, which can achieve efficient production efficiency and meet the needs of large-scale production.
High precision: This machine tool has excellent machining accuracy, which can ensure the machining quality of workpieces such as train shafts and improve the overall performance of products.
Strong rigidity: The machine tool has a reasonable structural design, strong rigidity, and can withstand large processing loads, ensuring the stability of the processing process.
Customized services: Youtai Machine Tool provides customized services that can produce according to the specific needs of customers, meeting the personalized needs of different customers.
X Ton machine tools also have a strong technical research and development team and advanced production equipment, laying a solid foundation for high-quality products and ensuring that the performance and quality of the machine tools reach industry-leading levels. These highlights make Youtai's train axle milling machine highly competitive in the market.
